Massey Ferguson 1740M

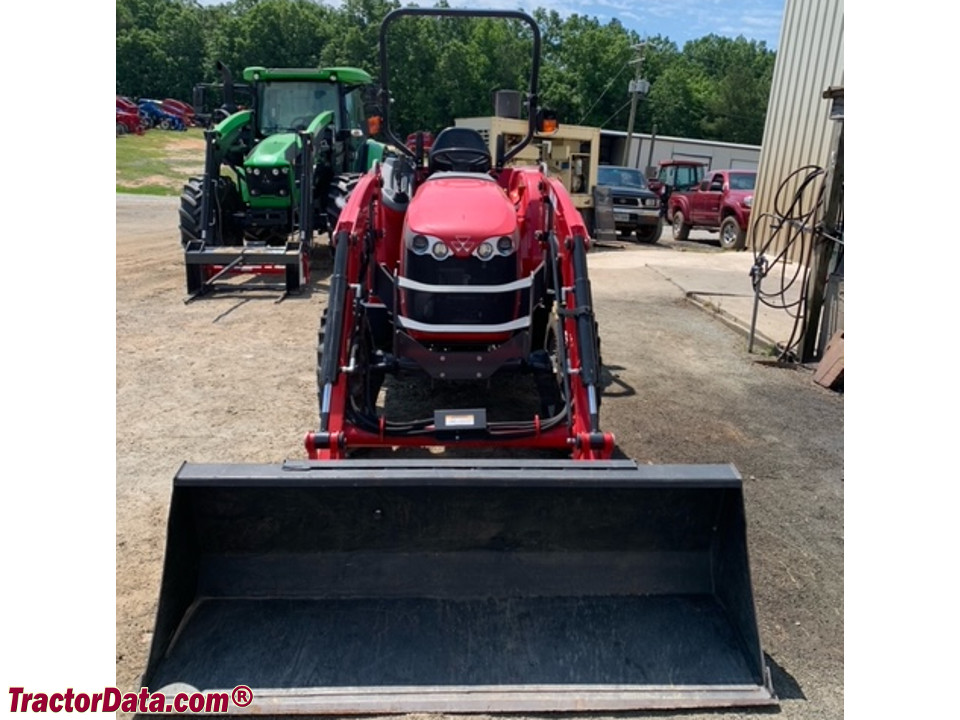

Massey Ferguson 1740M tractor photo
2018 -
1700M Series
Compact Utility tractor
1749
Series:1735M1740M1750M
Production
Manufacturer:Massey Ferguson (a part of AGCO)
Type:Compact Utility tractor
Original price:$26,408 (2019 )
Massey Ferguson 1740M Power
Engine:40 hp
29.8 kW
Gear PTO (claimed):31.2 hp
23.3 kW
Hydro PTO (claimed):29.1 hp
21.7 kW
Massey Ferguson 1740M Engine
Shibaura 1.7L 3-cyl diesel
Fuel tank:10.6 gal
40.1 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:bull gear
Differential lock:rear standard
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional. Deluxe cab available.
Transmissions:12-speed shuttle
 hydrostatic
Transmission details ...
Hydraulics
Type:open center
Rear valves:3*Optional
Pump flow:12.1 gpm
45.8 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift (at 24"/610mm):2535 lbs
1149 kg
Rear Arms:telescopic draft link ends
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent*Optional
Mid RPM:1916
Dimensions & Tires
Wheelbase:71.1 inches
180 cm
Weight:3373 to 3781 pounds
Front tire:8-16
Rear tire:12.4x24
Full dimensions and tires ...
Massey Ferguson 1740M attachments
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
Electrical
Ground:negative
Battery volts:12
