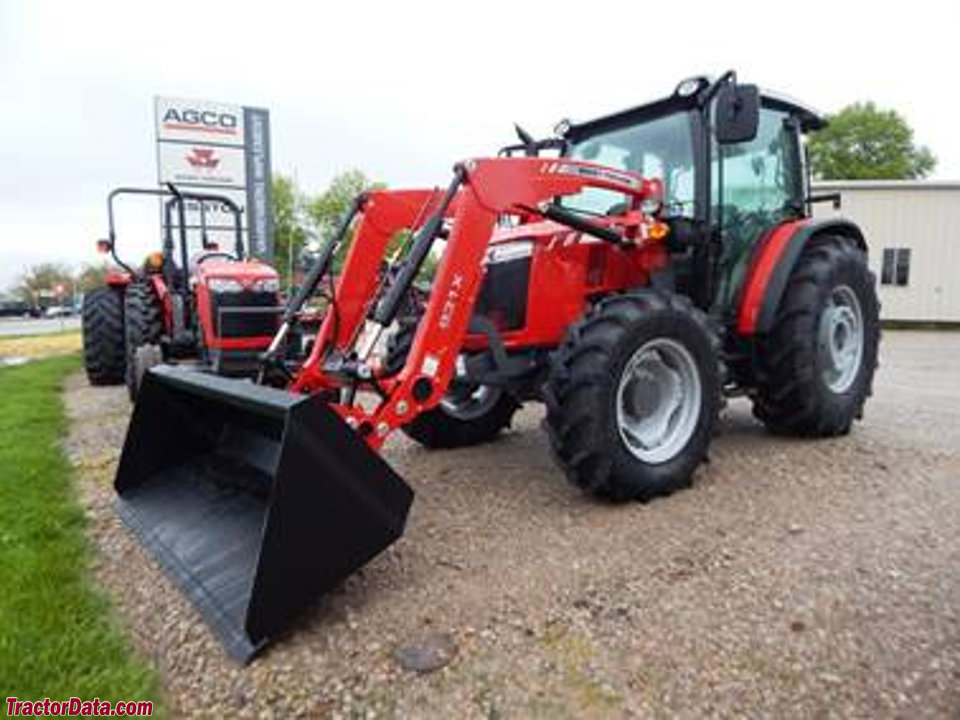

Massey Ferguson 4707
| 2016 - |
4700 Global Series | Utility tractor |
|
Production |
Manufacturer: | Massey Ferguson (a part of AGCO)
|
Type: | Utility tractor
|
Factories: | Brazil
|
| China
|
Original price: | $36,056 (2018 ROPS 2WD )
|
Original price: | $50,796 (2018 Cab 4WD )
|
Massey Ferguson 4707 Power |
Engine: | 70 hp 52.2 kW
|
PTO (claimed): | 58 hp 43.3 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Final drives: | planetary
|
Differential lock: | electro-hydraulic rear
|
Brakes: | wet disc
|
Cab: | Two-post folding ROPS. Cab optional with air-conditioning.
|
Transmission: | 12-speed power shuttle
|
Transmission details ... |
Hydraulics |
Type: | open center
|
Valves: | 1 to 3
|
SCV flow: | 17.2 gpm 65.1 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift (at 24"/610mm): | 4850 lbs 2199 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Clutch: | electro-hydraulic wet disc
|
Rear RPM: | 540/1000 (1.375)
|
| 540/540E (1.375)
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 80
|
Battery CCA: | 590
|
Battery volts: | 12
|
