Tractors > Kubota > KL38 Hi-Speed

Kubota KL38 Hi-Speed - transmission

No photo available
1999 - 2005   KL Series
Compact Utility tractor
Next model:Kubota KL380
Series next:Kubota KL41
Series back:Kubota KL34
more Kubota KL38 Hi-Speed specifications...






Transmission:

Gears:20 forward and reverse
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).
Speeds:

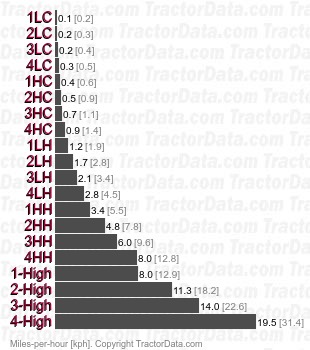

KL38 Hi-Speed   speeds


Transmission:

Gears:30 forward and 20 reverse
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.
