Tractors > Minneapolis-Moline > JTS

Minneapolis-Moline JTS

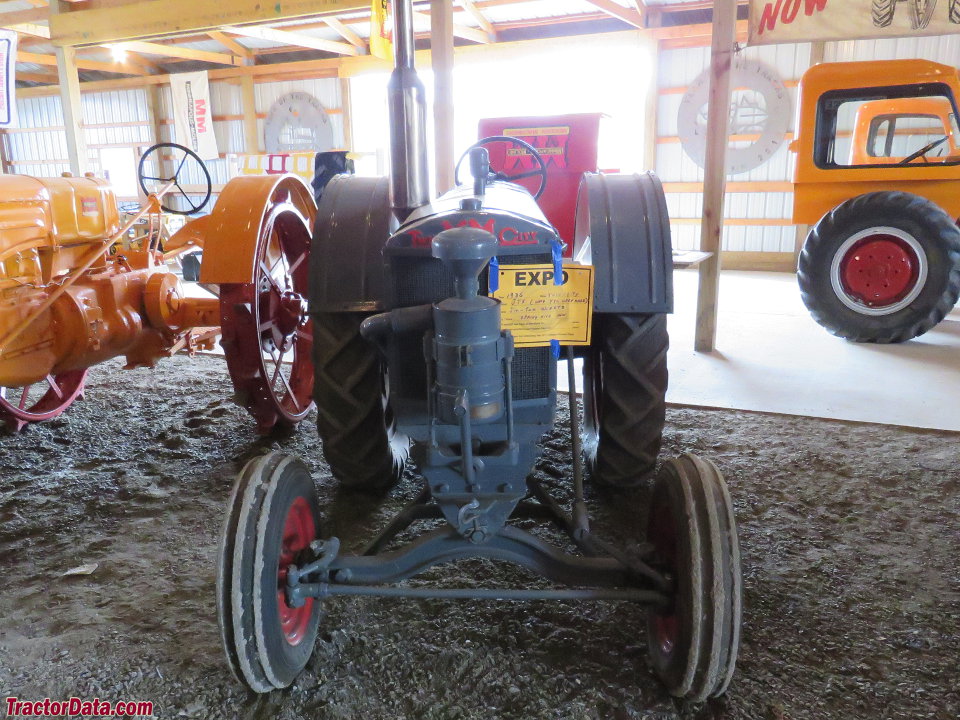

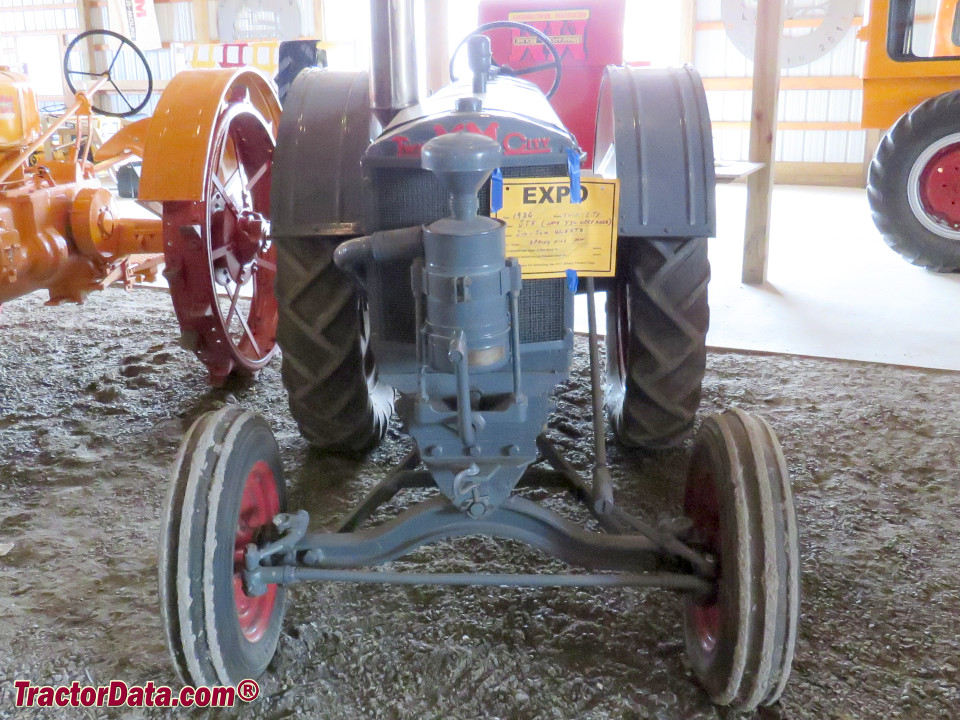

Minneapolis-Moline JTS tractor photo
1936 - 1938
Standard-tread tractor






Production:

Manufacturer:Minneapolis-Moline


Variants:

JT:row-crop
JTS:standard front
JTO:orchard


Minneapolis-Moline JTS Engine:

   Waukesha 3.2L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:17 gal [64.3 L]
Aux. fuel:2 gal [7.6 L]


Dimensions & Tires:

Weight:3450 lbs [1564 kg]
Front tire:25x4.50
Rear tire:50x8
full dimensions and tires ...


JTS Serial Numbers:


how to read serial numbers...



Minneapolis-Moline JTS Power:

Drawbar (claimed):14 hp [10.4 kW]
Belt (claimed):22 hp [16.4 kW]
Plows:2-3


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:15.625 inches [39 cm]
Width:6.5 inches [16 cm]
RPM:730
Speed:3000 ft/min [914.40 meters/min]
