Kubota L1-295

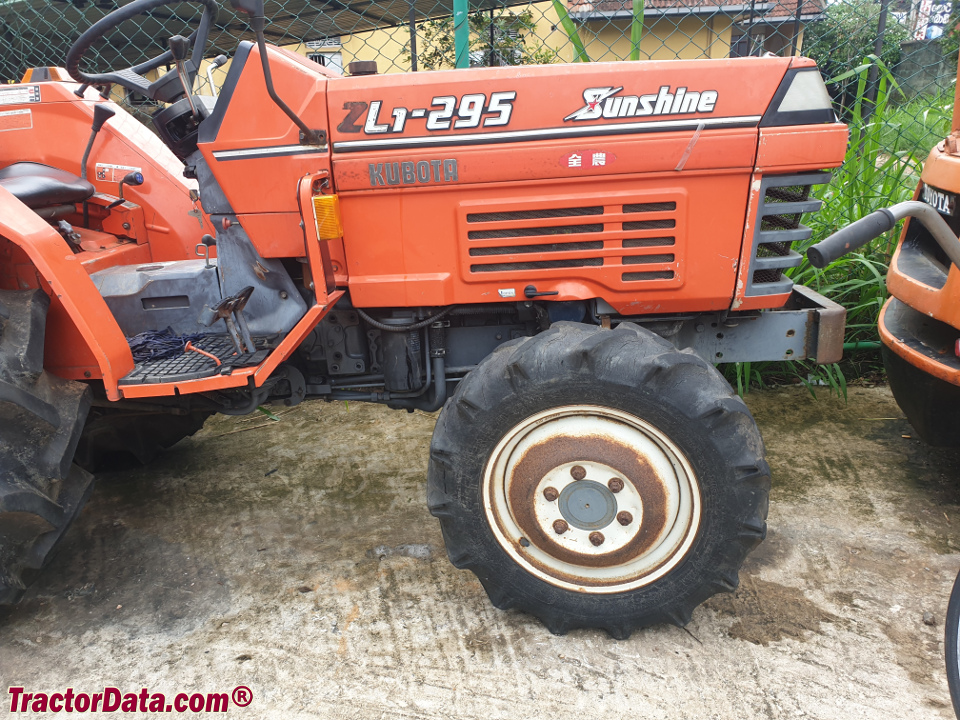

Kubota L1-295 tractor photo
1988 - 1991
L1 Series
Compact Utility tractor
Series map:
L1-275
L1-295
L1-315
19.8kw
21.0kw
22.4kw
Production
ManufacturerKubota
Compact Utility tractor
Kubota L1-295 Engine
Kubota 1.5L 4-cyl diesel
Engine details ...
Kubota L1-295 Power
Engine28.1 hp
21.0 kW
PTO (claimed)27.1 hp
20.2 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Hydraulics
Pump flow6.2 gpm
23.5 lpm
Tractor hitch
Rear TypeI
Rear lift1488 lbs
674 kg
Power Take-off (PTO)
Rear RPM600/836/1038/1350 (1.375)
Dimensions & Tires
Wheelbase68.3 inches
173 cm
Weight2546 to 2624 pounds
Front tire5.00-15
2WD Rear tire13.6-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
