Tractors > Kubota > GL320

Kubota GL320

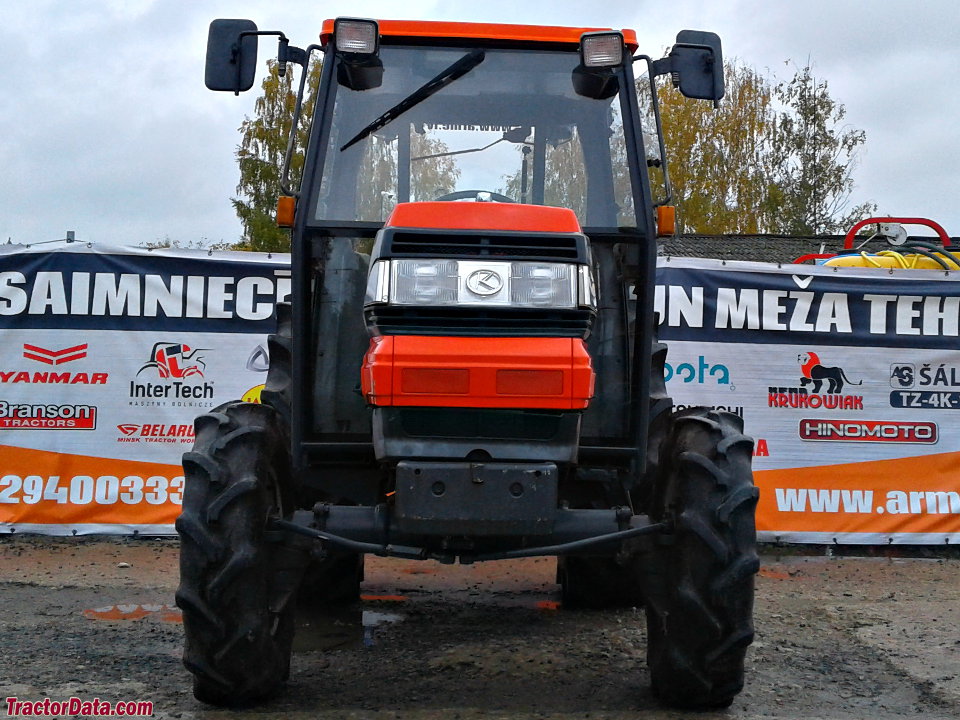

Kubota GL320 tractor photo
1993 - 1995   GL Series
Compact Utility tractor
Next model:Kubota GL321
Series next:Kubota GL338
Series back:Kubota GL300






Production:

Manufacturer:Kubota


Variants:

GL320:ROPS
GL320Q:cab
GL320E:narrow


Kubota GL320 Engine:

   Kubota 1.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:9.25 gal [35.0 L]


3-Point Hitch:

Rear Type:I
Rear lift:1995 lbs [904 kg]


Power Take-off (PTO):

Rear RPM:586/829/1016/1346 (1.375)


Dimensions & Tires:

Wheelbase:68.9 inches [175 cm]
Weight:2822 to 3109 pounds
Front tire:8-16
Rear tire:13.6-24
full dimensions and tires ...


GL320 Serial Numbers:


how to read serial numbers...



Kubota GL320 Power:

Engine:31.6 hp [23.6 kW]
PTO (claimed):28.8 hp [21.5 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Two-post ROPS. Cab optional.


Hydraulics:

Pump flow:6.3 gpm [23.8 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
