CaseIH 5130 Maxxum

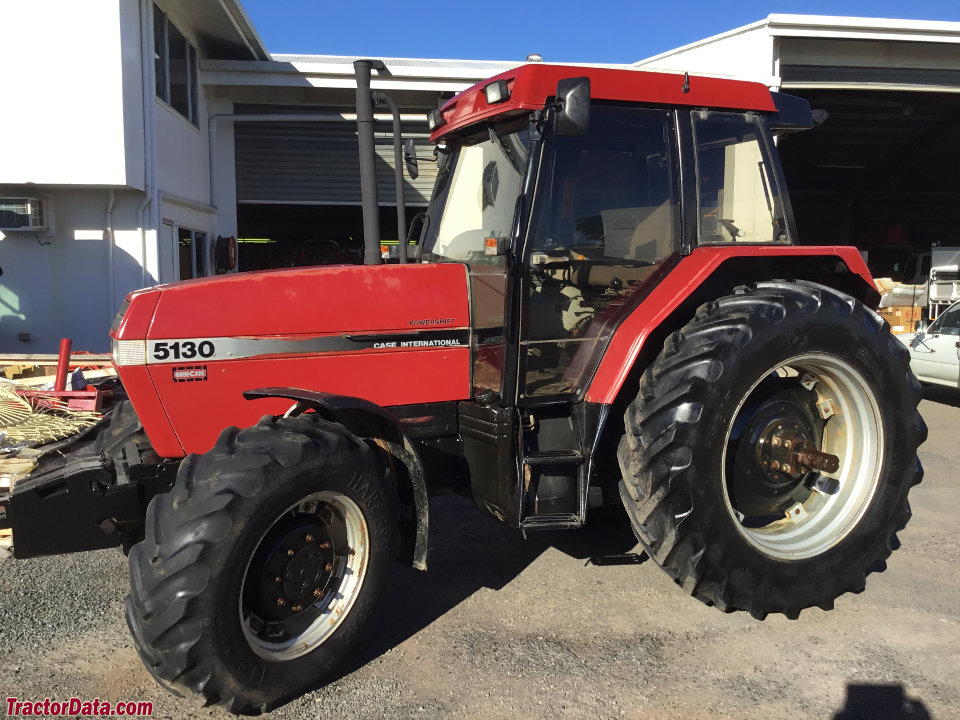

CaseIH 5130 Maxxum tractor photo
1990 - 1997
Maxxum Series
Utility tractor
Series map:
5120
5130
5140
70.1kw
78.3kw
87.2kw
Production
ManufacturerCaseIH
Utility tractor
Built in Neuss, Germany
CaseIH 5130 Transmissions
16-speed power shuttle
16-speed four-speed power shift
24-speed creeper
Transmission details ...
CaseIH 5130 Power
Engine105 hp
78.3 kW
PTO (claimed)86 hp
64.1 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Power steering
Wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.
Capacity
Fuel44.9 gal
169.9 L
Hydraulic system20.1 gal
76.1 L
Hydraulics
Capacity20.1 gal
76.1 L
Pressure2756 psi
190.0 bar
Pump flow20.7 gpm
78.3 lpm
Tractor hitch
Rear TypeII
Controlelectro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm)7700 lbs
3492 kg
Front HitchII OptOptional
Front lift (at 24"/610mm)5200 lbs
2358 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@1870
 1000@2200
Dimensions & Tires
2WD Wheelbase103.7 inches
263 cm
4WD Wheelbase101.8 inches
258 cm
Weight9458 to 10582 pounds
Front tire14.9R24
Rear tire16.9R38
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging amps65
Battery volts12
Battery AH105
