Massey Ferguson 5711

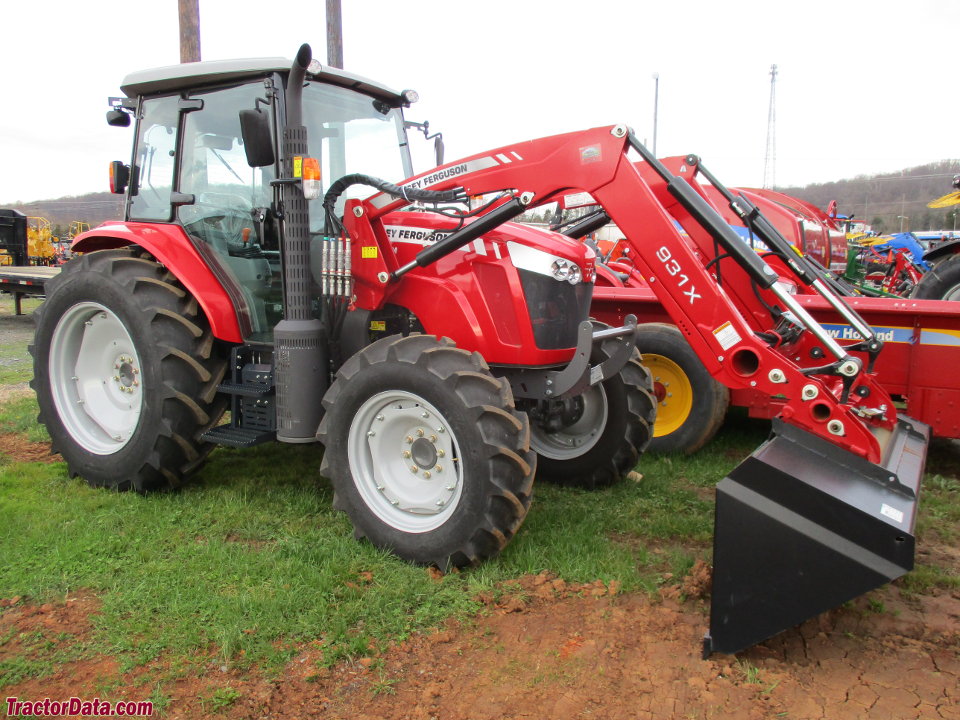

Massey Ferguson 5711 tractor photo
2017 -
5700 Series
Utility tractor
Series map:
5710
5711
95.0hp
105.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Original price was $65,553 in 2019
Massey Ferguson 5711 Engine
AGCO Power 4.4L 4-cyl diesel
Fuel tank38.3 gal
145.0 L
Engine details ...
Massey Ferguson 5711 Transmissions
12-speed mechanical shuttle
12-speed power shuttle
16-speed four-speed power shift
Transmission details ...
Massey Ferguson 5711 Power
Engine105 hp
78.3 kW
PTO (claimed)93 hp (shuttle)
69.4 kW
 96 hp (Dyna-4)
71.6 kW
Mechanical
Four-wheel drive
Final drivesinternal planetary
Differential lockelectro-hydraulic rear
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional.
Hydraulics
Typeopen center
Valves2 or 3
Pump flow15.1 gpm
57.2 lpm
 25.9 gpm*Optional, with additional 41L auxiliary pump.
98.0 lpm
Tractor hitch
Rear TypeII
Rear lift (at 24"/610mm)7710 lbs
3497 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/1000
 540/540E/1000 OptOptional
Dimensions & Tires
Wheelbase95.7 inches
243 cm
Weight9195 to 10011 pounds
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps80
Battery volts12
References
5711 references literature
MF 5700 and MF 6700 12x12 Power Shuttle and Dyna-4 Global Series published in 2021, by Massey Ferguson
