Tractors > Kubota > BX2680

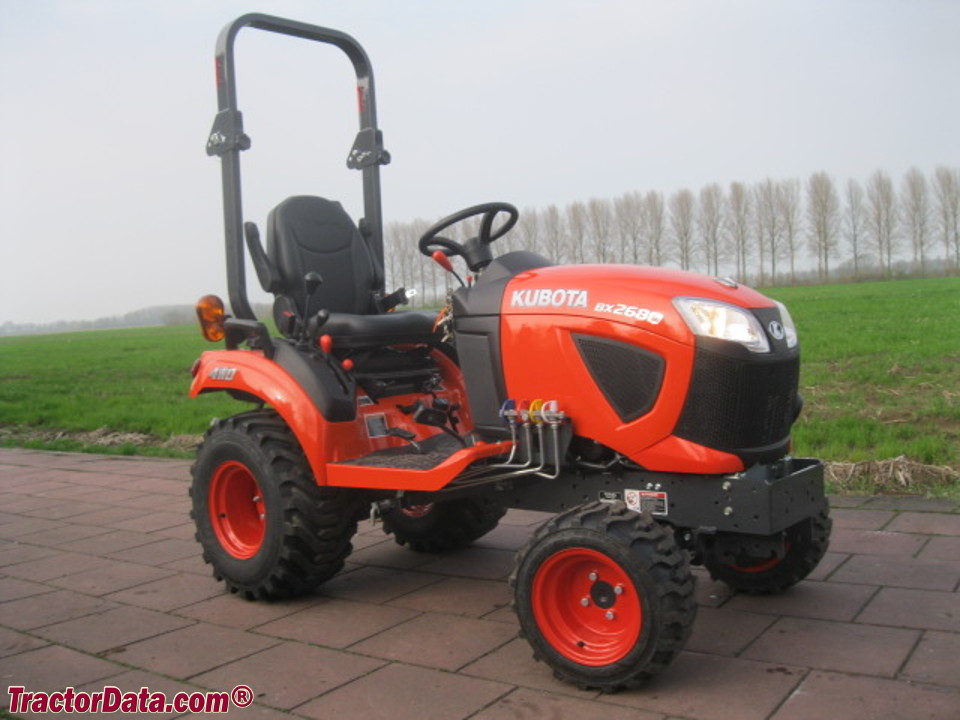

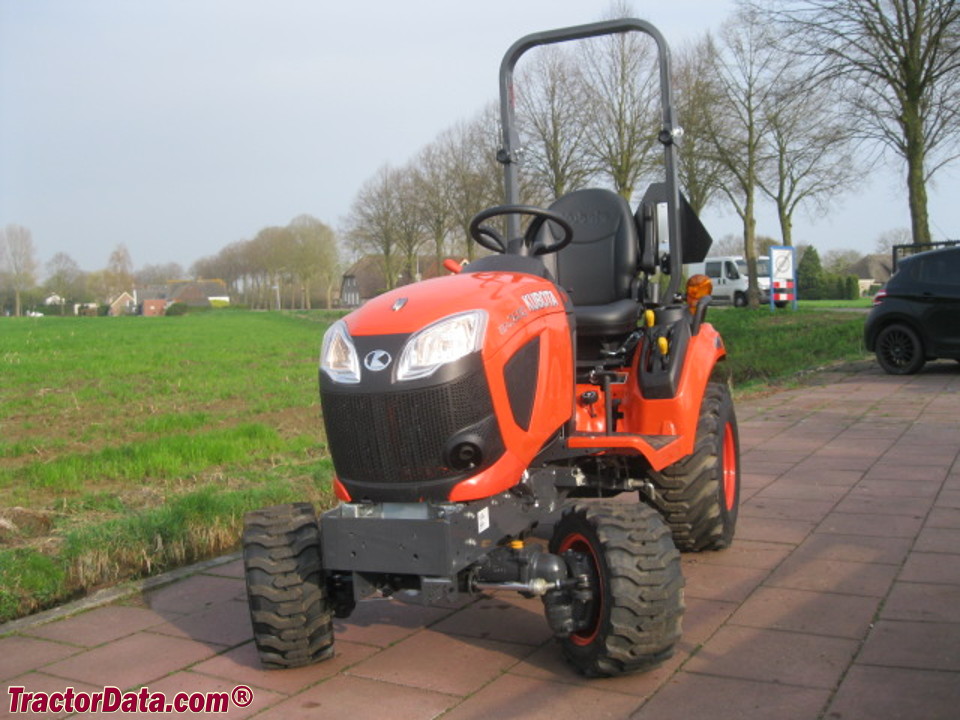

Kubota BX2680

No photo available
2017 -    BX80 Series
Compact Utility tractor
Previous model:Kubota BX2670-1
Series back:Kubota BX2380






Production:

Manufacturer:Kubota
Original price (USD)
   $13,347 (2017 )


Kubota BX2680 Engine:

   Kubota 1.0L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.6 gal [25.0 L]


3-Point Hitch:

Rear Type:I
Rear lift (at 24"/610mm):680 lbs [308 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Mid RPM:2500


Dimensions & Tires:

Wheelbase:55.1 inches [139 cm]
Weight:1521 lbs [689 kg]
Front tire:18x8.5-10
Rear tire:26x12-12
full dimensions and tires ...


Kubota BX2680 attachments:

 mowing deck
 front-end loader
all BX2680 attachments ...


BX2680 Serial Numbers:


how to read serial numbers...



Kubota BX2680 Power:

Engine:25.5 hp [19.0 kW]
PTO (claimed):19.5 hp [14.5 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Pump flow:6.2 gpm [23.5 lpm]


Electrical:

Ground:negative
Charging system:alternator


Battery:

Number:1
Volts:12


Page information:
