Branson 5220H

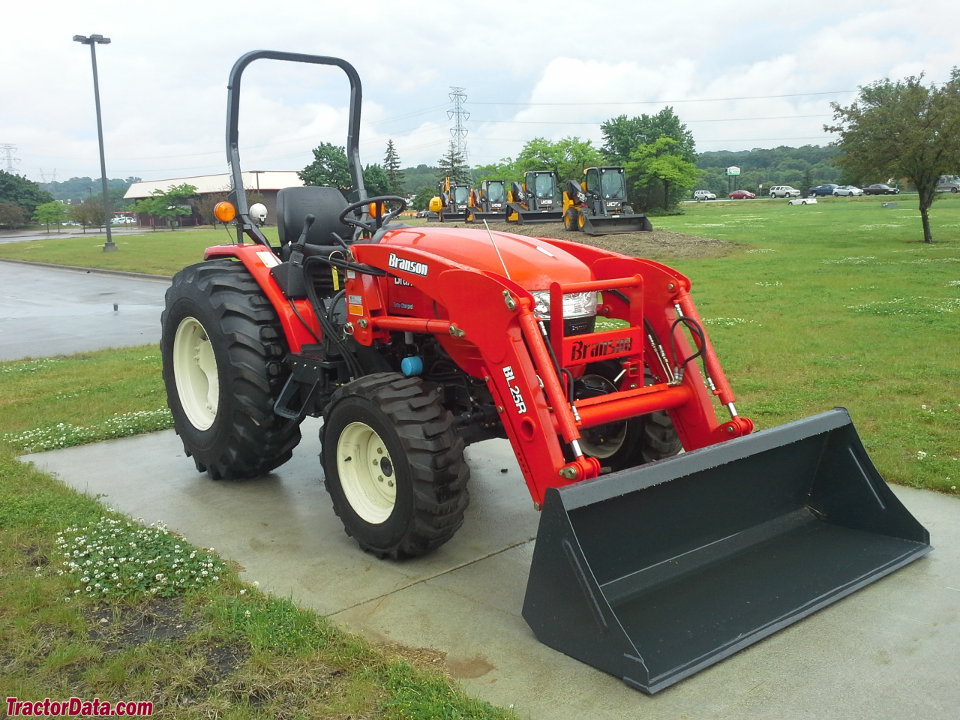

Branson 5220H tractor photo
2016 -
20 Series
Compact Utility tractor
Production
Manufacturer:Branson (a part of Kukje)
Type:Compact Utility tractor
Factory:South Korea
Branson 5220H Power
Engine:47 hp
35.0 kW
PTO (claimed):42 hp
31.3 kW
Branson 5220H Engine
Kukje 2.3L 4-cyl diesel
Fuel tank:9.3 gal
35.2 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Transmission details ...
Hydraulics
Pump flow:10.4 gpm
39.4 lpm
Steering flow:5 gpm
18.9 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:3306 lbs
1499 kg
Rear Arms:telescopic lower links
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
Dimensions & Tires
Wheelbase:70.9 inches
180 cm
Weight:4118 lbs
1867 kg
Front tire:7x16
Rear tire:12.4x24
Full dimensions and tires ...
5220H Serial Numbers

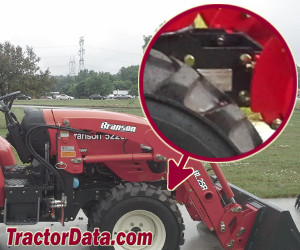

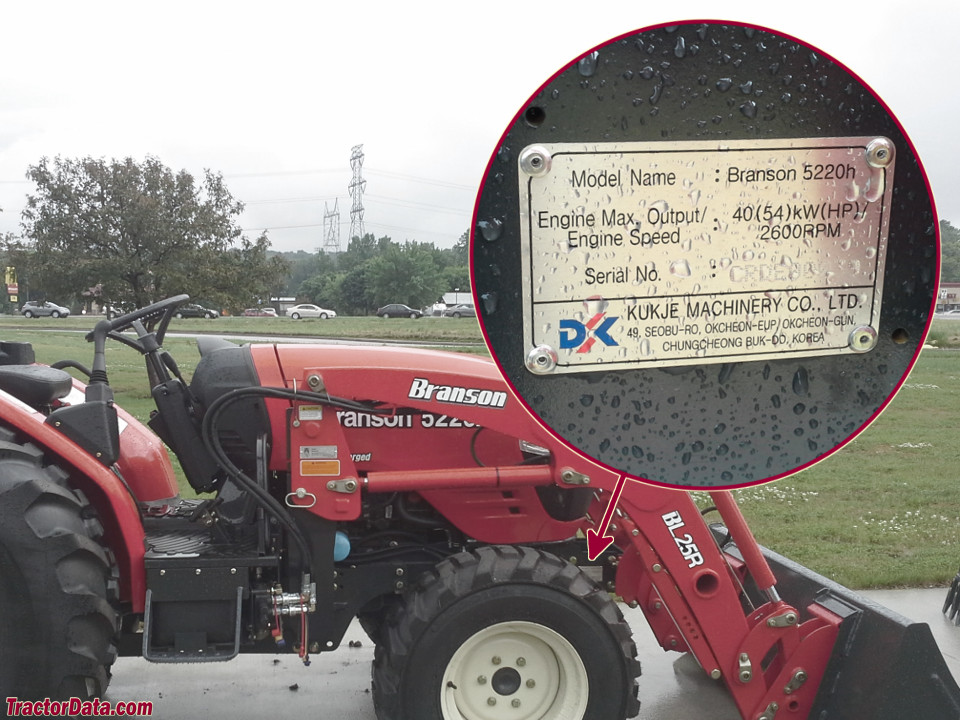

Location:Serial number plate on the front-right of the Branson 5220H tractor frame, ahead of the front axle.
photo of 5220H serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:70
Battery volts:12
