Fendt 724 Vario

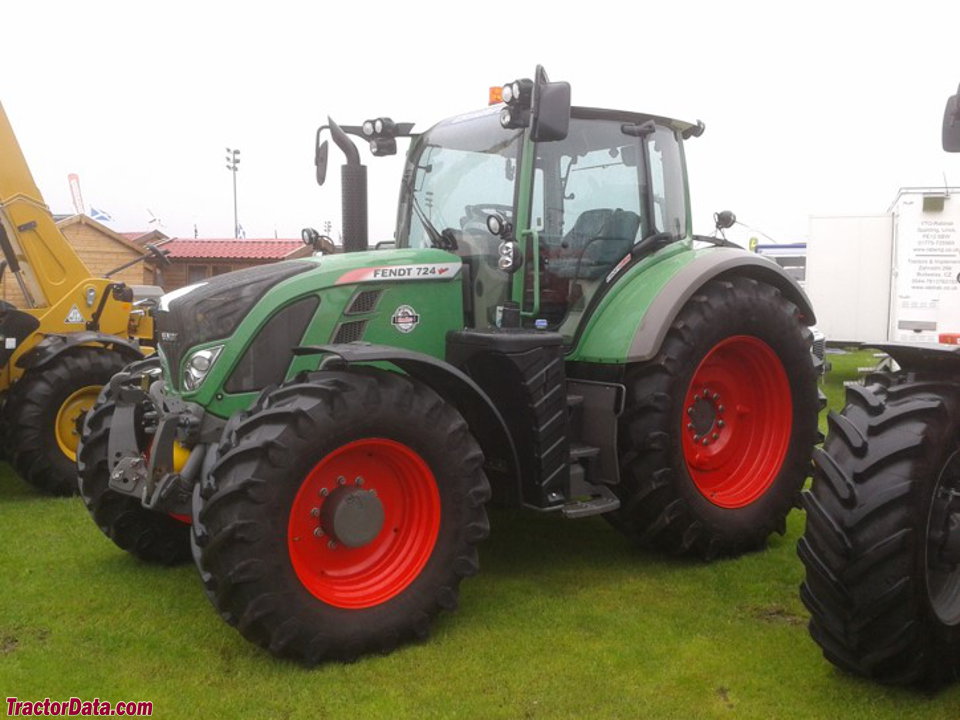

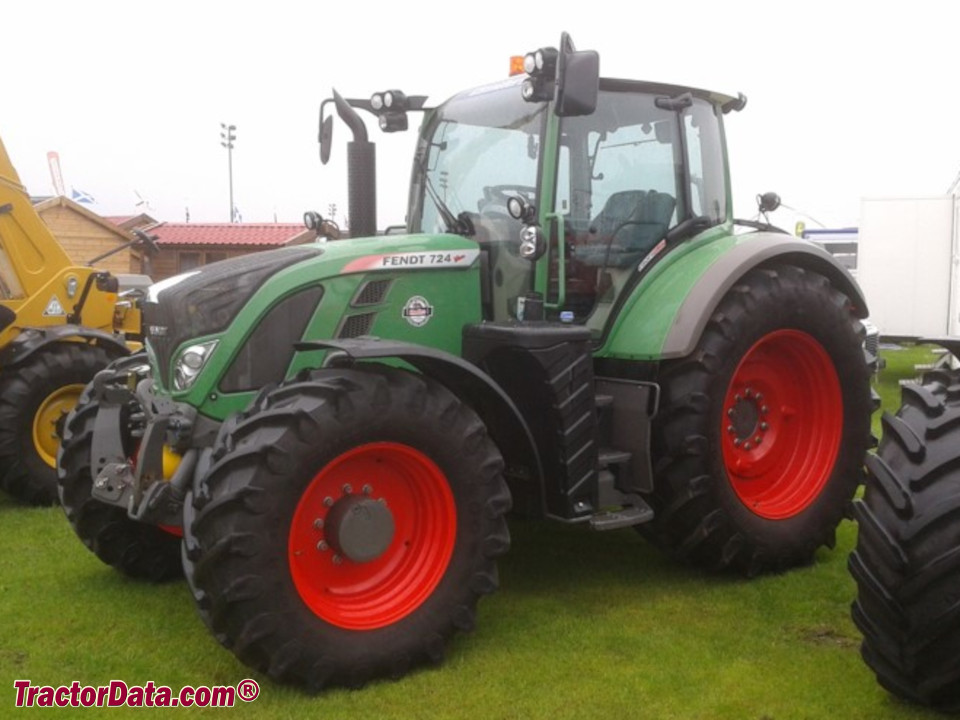

Fendt 724 Vario tractor photo
2012 - 2023
Model year
700 Vario Series
Row-Crop tractor
Series map:
722 Vario
724 Vario
165.5kw
176.7kw
Production
ManufacturerFendt (a part of AGCO)
Row-Crop tractor
Fendt 724 Vario Engine
Deutz 6.1L 6-cyl
Fuel tank105.7 gal
400.1 L
Exhaust fluid (DEF)10 gal
37.9 L
Engine details ...
Fendt 724 Vario Transmission
continuously-variable transmission (CVT)
Transmission details ...
Fendt 724 Vario Power
Engine (gross)237 hp
176.7 kW
Engine (net)220 hp
164.1 kW
Engine (max)246 hp
183.4 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Power steering
Wet disc brakes
VisioPlus cab standard with air-conditioning and pneumatic suspension. Variotronic; VarioGuide optional
Hydraulics
Typeload sensing
Pressure2901 psi
200.0 bar
Rear valves2 to 5
Front valves0 to 2
Pump flow28.8 gpm
109.0 lpm
 40.2 gpm*Standard on Profi and ProfiPlus.
152.2 lpm
 51 gpm*Optional on Profi and ProfiPlus.
193.0 lpm
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/540E/1000/1000E
Front RPM1000
Dimensions & Tires
Wheelbase109.6 inches
278 cm
Weight17593 lbs
7980 kg
Front tire540/65R30
Rear tire650/65R42
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging amps200
Charging volts14
Battery volts12
Battery AH180
References
724 Vario references literature
700 Vario published in 2015, by Fendt
