Tractors > Fendt > 720 Vario

Fendt 720 Vario

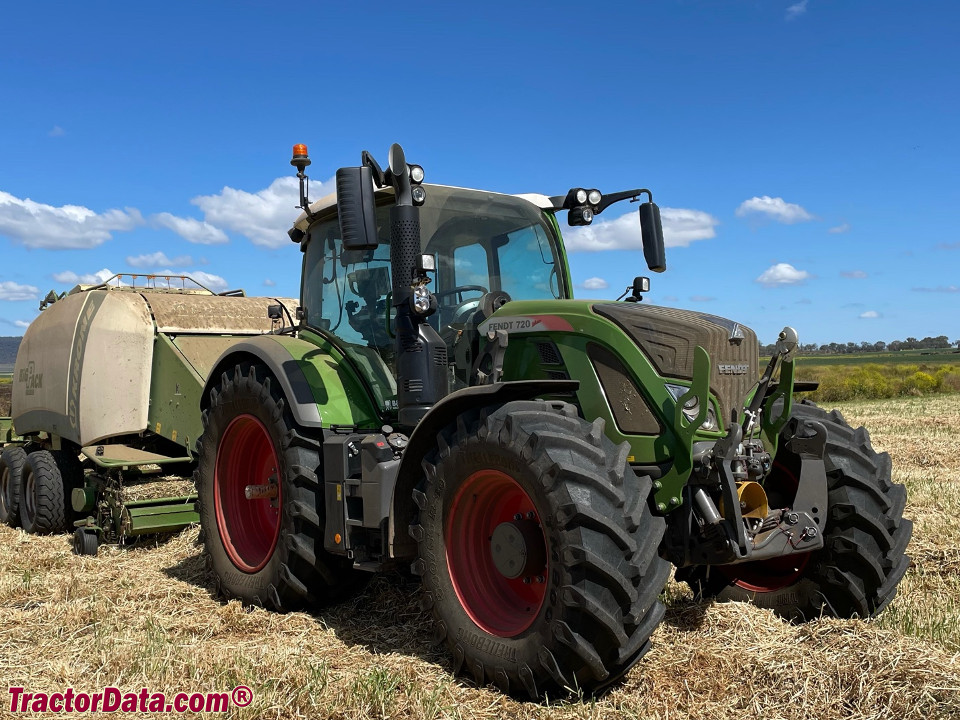

Fendt 720 Vario tractor photo
2012 -    700 Vario Series
Row-Crop tractor
Series next:Fendt 722 Vario
Series back:Fendt 718 Vario




Fendt 720 Vario Engine:

   Deutz 6.1L 6-cyl
full engine details ...


Fuel:105.7 gal [400.1 L]
Exhaust fluid (DEF):10 gal [37.9 L]

Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/540E/1000/1000E
Front RPM:1000

Dimensions & Tires:

Wheelbase:109.6 inches [278 cm]
Weight:17593 lbs [7980 kg]
Front tire:540/65R30
Rear tire:650/65R42
full dimensions and tires ...

Fendt 720 Vario attachments:

 front-end loader
all 720 Vario attachments ...

720 Vario Serial Numbers:

- Serial numbers unknown -

Fendt 720 Vario Power:

Engine (gross):201 hp [149.9 kW]
Engine (net):185 hp [138.0 kW]
Engine (max):208 hp [155.1 kW]


Chassis:4x4 MFWD 4WD
Final drives:planetary
Brakes:wet disc
Cab:VisioPlus cab standard with air-conditioning and pneumatic suspension. Variotronic
 VarioGuide optional


Type:load sensing
Pressure:2901 psi [200.0 bar]
Rear valves:2 to 5
Front valves:0 to 2
Pump flow:28.8 gpm [109.0 lpm]
 40.2 gpm [152.2 lpm] *Standard on Profi and ProfiPlus.
 51 gpm [193.0 lpm] *Optional on Profi and ProfiPlus.


Charging system:alternator
Charging amps:200
Charging volts:14
