Tractors > Fendt > 1038 Vario

Fendt 1038 Vario

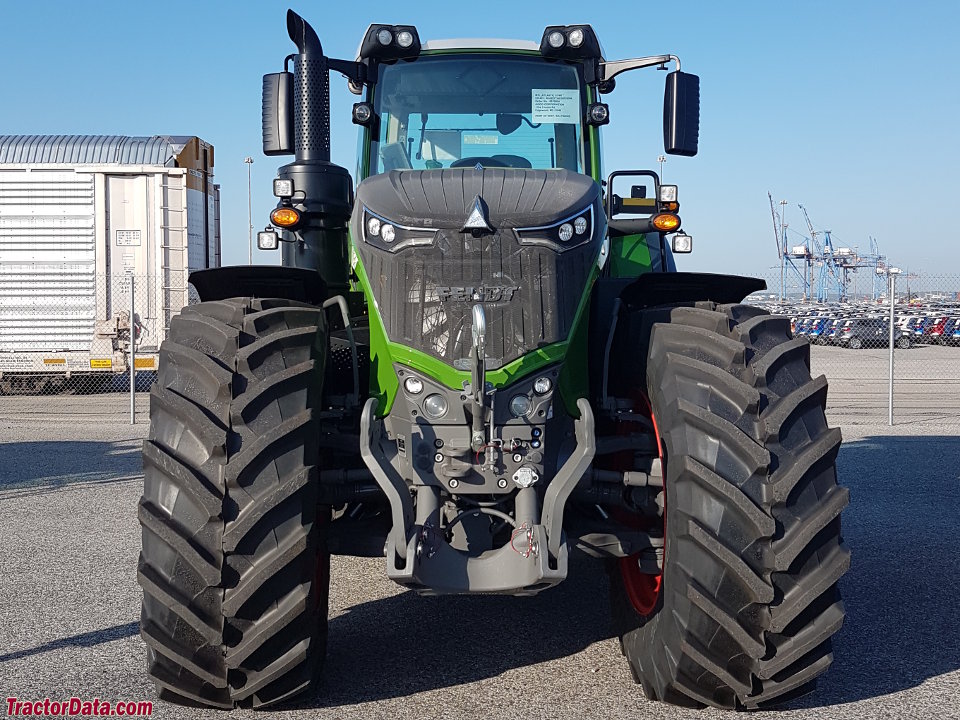

Fendt 1038 Vario tractor photo
2015 -    1000 Vario Series
Row-Crop tractor
Series next:Fendt 1042 Vario






Production:

Manufacturer:AGCO


Fendt 1038 Vario Engine:

   MAN 12.4L 6-cyl diesel
full engine details ...


Capacity:

Fuel:211.3 gal [799.8 L]
Exhaust fluid (DEF):22.5 gal [85.2 L]


3-Point Hitch:

Rear Type:IV
Front lift:12560 lbs [5697 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000/1000E/1300


Dimensions & Tires:

Wheelbase:129.9 inches [329 cm]
Weight:30865 lbs [14000 kg]
Front tire:650/65R34
Rear tire:710/75R42
full dimensions and tires ...


1038 Vario Serial Numbers:


- Serial numbers unknown -



Fendt 1038 Vario Power:

Engine (net):380 hp [283.4 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning and mechanical suspension. Available pneumatic suspension system.


Hydraulics:

Type:load sensing
Pressure:2900 psi [200.0 bar]
Pump flow:43.6 gpm [165.0 lpm]
 58.1 gpm [219.9 lpm] *Optional.
 113.6 gpm [430.0 lpm] *Dual pump option.


Electrical:

Charging system:alternator
Charging amps:270
Charging volts:14


Battery:

Number:2
Volts:12
Amp-hours:180
