CaseIH Farmall 115C

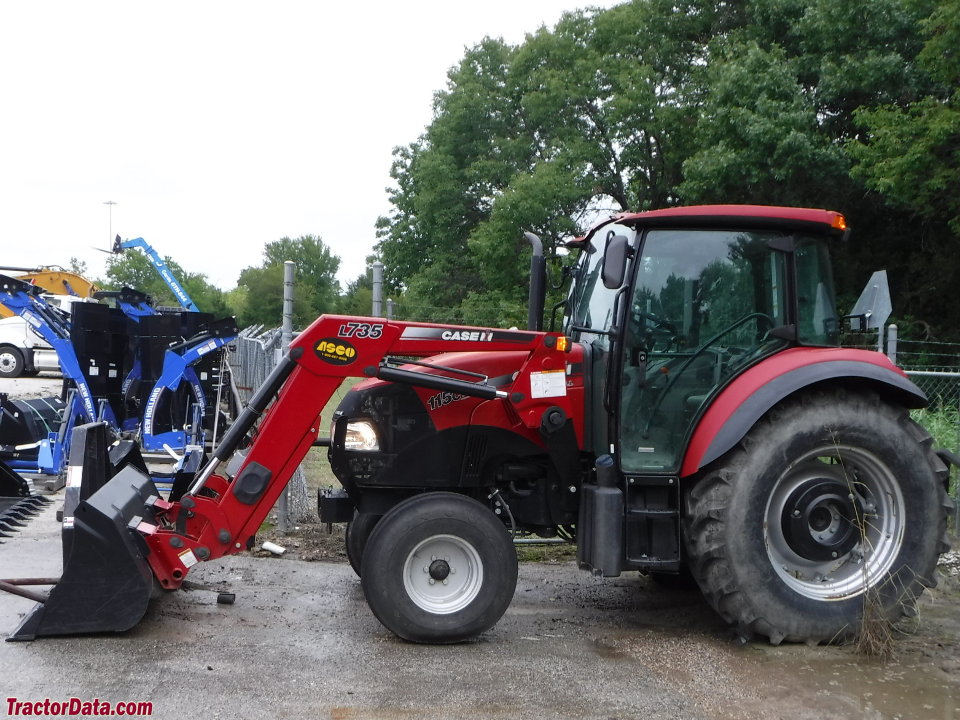

CaseIH Farmall 115C tractor photo
2013 - 2015
Farmall C Series
Utility tractor
Series map:
Farmall 105C
Farmall 115C
Utility tractor
CaseIH Farmall 115C Engine
Fiat Powertrain Technologies (FPT) 3.4L 4-cyl diesel
Fuel tank30.3 gal
114.7 L
Engine details ...
CaseIH Farmall 115C Transmissions
12-speed mechanical shuttle
12-speed power shuttle
20-speed creeper
Transmission details ...
CaseIH Farmall 115C Power
Engine115 hp
85.8 kW
PTO (claimed)98 hp
73.1 kW
Drawbar (tested)69.3 hp
51.7 kW
PTO (tested)103.7 hp
77.3 kW
Performance test details ...
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockmechanical rear
Power steering
ROPS Brakesmechanical wet disc
Cab Brakeshydraulic wet disc
Two-post foldable ROPS. Cab optional with heat and air-conditioning.
Typeopen center
Valves1 or 2
Pump flow12.9 gpm
48.8 lpm
 16.9 gpmOptOptional
64.0 lpm
Tractor hitch
Rear TypeII
Controlmechanical upper-link draft sensing
Rear lift (at 24"/610mm)5620 lbs
2549 kg
Drawbarswinging drawbar
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540 (1.375)
 540/1000 OptOptional
Dimensions & Tires
4WD Wheelbase89 inches
226 cm
Weight7937 lbs
3600 kg
Rear tire16.9R34
Full dimensions and tires ...
Charging systemalternator
Charging amps120
ROPS Battery CCA730
Cab Battery CCA800
Battery volts121
Farmall 115C references literature
Farmall C Series Tractors published in 2013, by CaseIH
