Tractors > Massey Ferguson > 4708

Massey Ferguson 4708

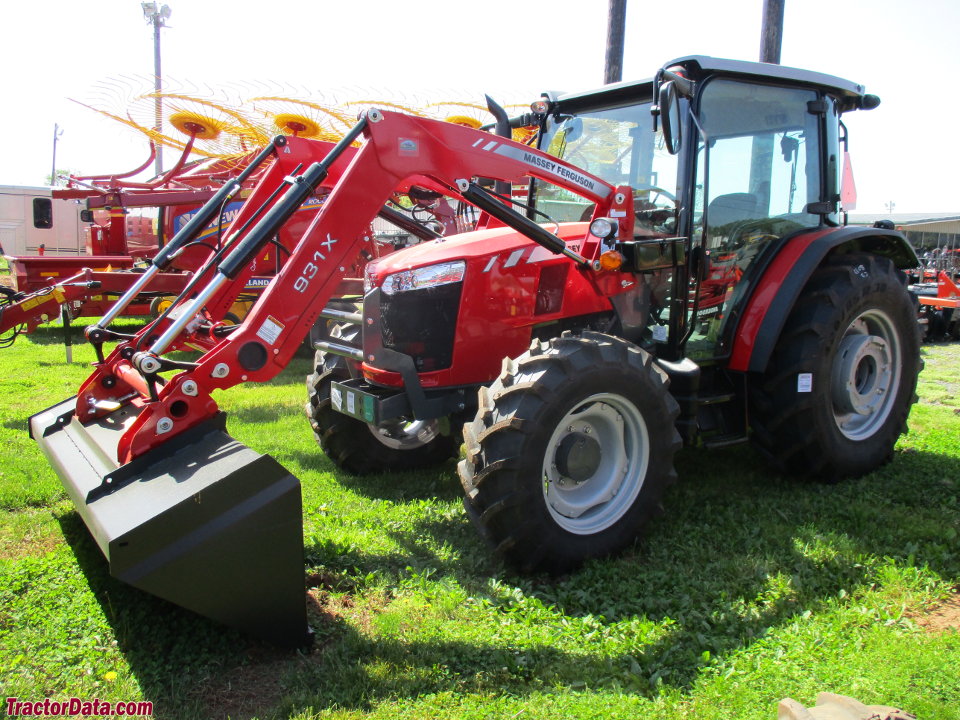

Massey Ferguson 4708 tractor photo
2016 -    4700 Global Series
Utility tractor
Series next:Massey Ferguson 4709
Series back:Massey Ferguson 4707






Production:

Manufacturer:Massey Ferguson (a part of AGCO)
Factory:China
Original price (USD)
   $41,783 (2018 ROPS 2WD )
   $59,048 (2018 Cab 4WD )


Massey Ferguson 4708 Engine:

   AGCO Power 3.3L 3-cyl diesel
full engine details ...


Capacity:

Fuel:27.7 gal [104.8 L]


3-Point Hitch:

Rear Type:II
Rear lift (at 24"/610mm):4850 lbs [2199 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000 (1.375)
 540/540E (1.375)


Dimensions & Tires:

Wheelbase:88.5 inches [224 cm]
Weight:7478 to 8644 pounds
Front tire:9.5L-15
2WD Rear tire:420/85R30
full dimensions and tires ...


Massey Ferguson 4708 attachments:

 front-end loader
all 4708 attachments ...


4708 Serial Numbers:


how to read serial numbers...



Massey Ferguson 4708 Power:

Engine:80 hp [59.7 kW]
PTO (claimed):68 hp [50.7 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:electro-hydraulic rear
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.


Hydraulics:

Type:open center
Valves:1 to 3
SCV flow:17.2 gpm [65.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:80


Battery:

Number:1
Cold-cranking amps:590
Volts:12
