Tractors > Ford > 8630

Ford 8630 - transmission

No photo available
1992 - 1997   30 Superforça Series
Series next:Ford 8830
Series back:Ford 8430
more Ford 8630 specifications...






Transmission:

Type:partially synchronized
Gears:12 forward and 4 reverse
Clutch:305mm cerametallic disc
Oil capacity:22.3 qts [21.1 L]
Four gears (1-4) in three ranges (I, II, III) plus reverse (R) range.
Speeds:With 18.4x38 rear tires.

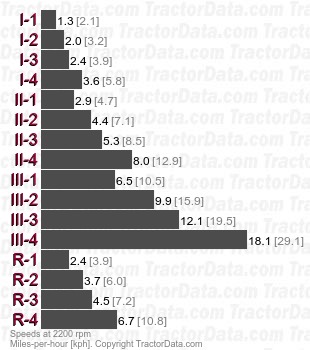

8630  partially synchronized speeds


Transmission:

Type:creeper
Gears:24 forward and 8 reverse
Clutch:305mm cerametallic disc
Four gears (1-4) in three ranges (I, II, III) plus reverse (R) range with additional dual range shift (creeper/normal).
Speeds:With 18.4x38 rear tires.

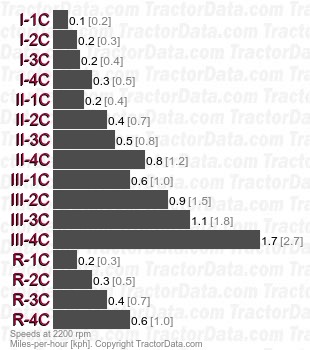

8630  creeper speeds
