Tractors > Ford > 8430

Ford 8430 - transmission

No photo available
1992 - 1997   30 Superforça Series
Series next:Ford 8630
Series back:Ford 8030
more Ford 8430 specifications...






Transmission:

Type:partially synchronized
Gears:12 forward and 4 reverse
Clutch:305mm cerametallic disc
Four gears (1-4) in three ranges (I, II, III) plus reverse (R) range.
Speeds:With 18.4x38 rear tires.

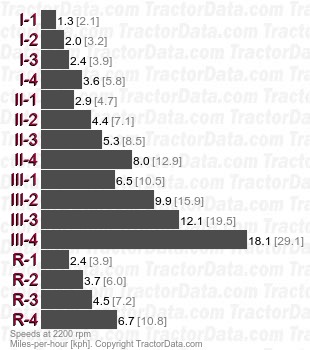

8430  partially synchronized speeds


Transmission:

Type:creeper
Gears:24 forward and 8 reverse
Clutch:305mm cerametallic disc
Four gears (1-4) in three ranges (I, II, III) plus reverse (R) range with additional dual range shift (creeper/normal).
Speeds:With 18.4x38 rear tires.

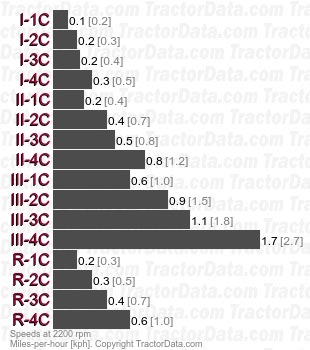

8430  creeper speeds
