Tractors > Iseki > SX65

Iseki SX65

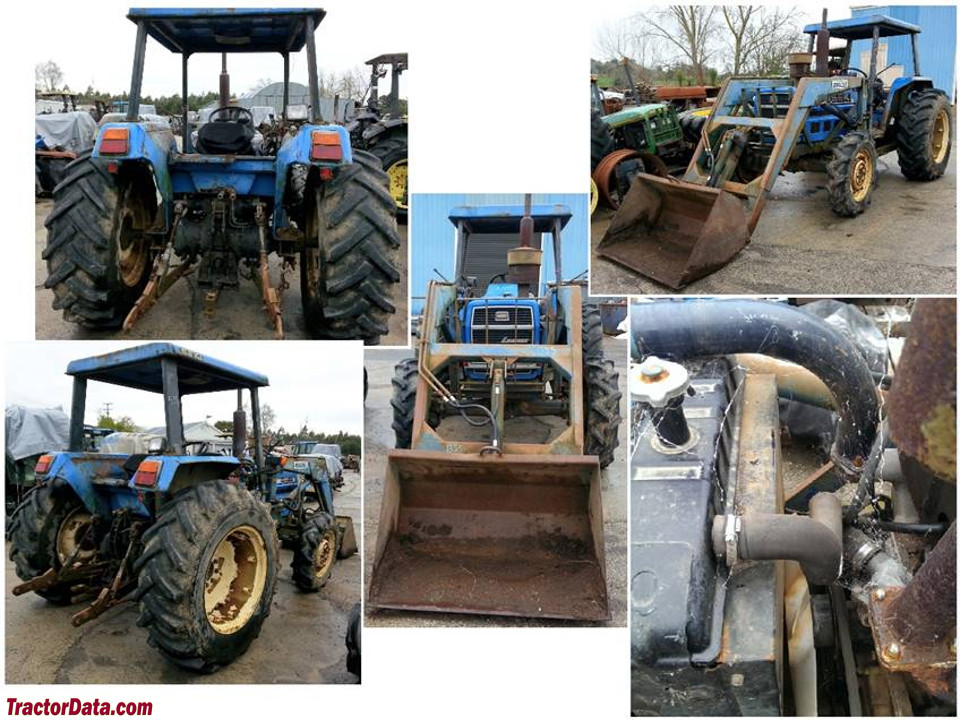

Iseki SX65 tractor photo
1985 - 1990   SX Series
Utility tractor
Series next:Iseki SX75
Series back:Iseki SX55






Production:

Manufacturer:Iseki
Factory:Japan


Iseki SX65 Engine:

   Isuzu 3.3L 4-cyl diesel
full engine details ...


Capacity:

Fuel:15.9 gal [60.2 L]


3-Point Hitch:

Rear Type:II
Control:position and draft control
Rear lift:5291 lbs [2399 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540 (1.375)
Engine RPM:540@1728


Dimensions & Tires:

2WD Wheelbase:84.3 inches [214 cm]
4WD Wheelbase:85 inches [215 cm]
Weight:5490 to 5930 pounds
Front tire:7.50-16
2WD Rear tire:16.9-30
full dimensions and tires ...


SX65 Serial Numbers:


- Serial numbers unknown -



Iseki SX65 Power:

Engine:60 hp [44.7 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Four-post ROPS.


Hydraulics:

Pump flow:10.6 gpm [40.1 lpm]


Electrical:

Ground:negative


Battery:

Volts:12
Amp-hours:110
