Tractors > Leader > D

Leader D

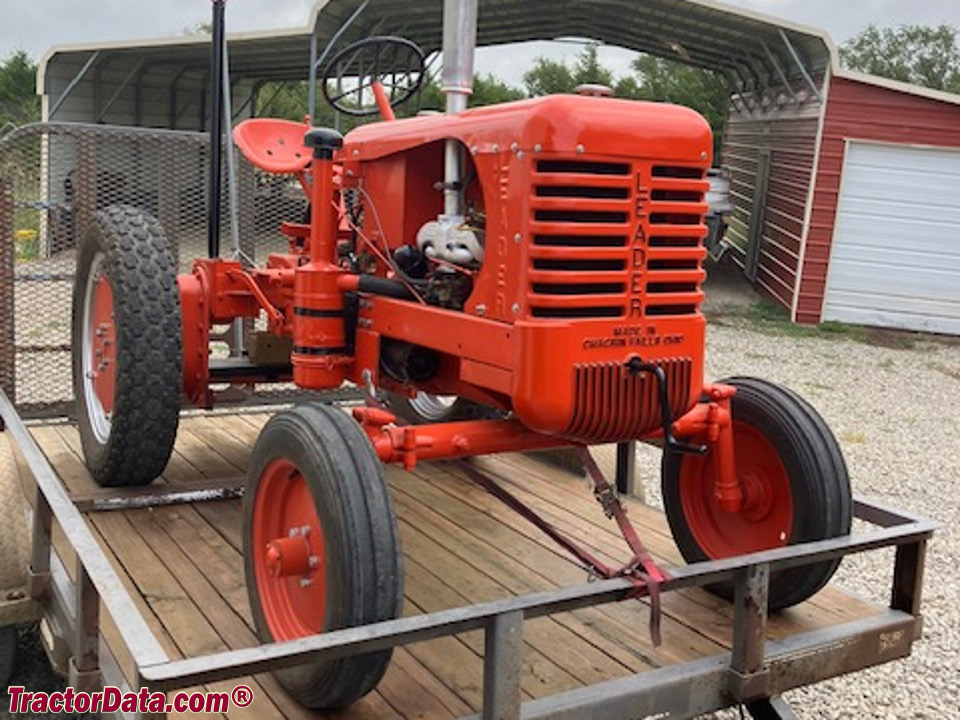

Leader D tractor photo
1947 - 1949
Utility tractor
Previous model:Leader B






Production:

Manufacturer:Leader Tractor Company
Factory:Auburn, Ohio, USA


Leader D Engine:

   Hercules 2.2L 4-cyl gasoline
full engine details ...


Capacity:



Power Take-off (PTO):

Rear PTO:transmission
Rear RPM:540


Dimensions & Tires:

Wheelbase:70 inches [177 cm]
Weight:2500 lbs [1134 kg]
Front tire:5x15
Rear tire:9x24
full dimensions and tires ...


D Serial Numbers:


- Serial numbers unknown -



Leader D Power:

Engine:31 hp [23.1 kW]
Plows:2*12-inch


Mechanical:

Chassis:4x2 2WD
Final drives:chain
Steering:manual
Brakes:mechanical contracting band
Cab:Open operator station.


Belt Pulley:

Diameter:7 inches [17 cm]
Width:6.5 inches [16 cm]
RPM:1510
Speed:2770 ft/min [844.30 meters/min]
