John Deere 9520RX Tests


John Deere 9520RX tractor photo
2016 - 2021
9R Series
Articulated Crawler tractor
Series map:
9470RX
9520RX
9570RX
470.0hp
520.0hp
570.0hp
OCED Tractor Test 2171

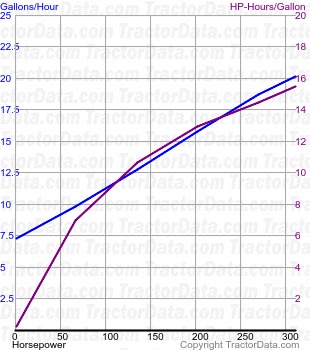

9520RX fuel use from test 1052
OCED Tractor Test 2171
Diesel 18-speed crawler
November 17 - 30, 2016
Link: OCED Tractor Test 2171 file
PTO performance
Max power362.53 hp
270.3 kW
Fuel use20.0 gal/hour
75.7 l/hour
Power at rated engine speed310.96 hp
231.9 kW
Fuel use20.1 gal/hour
76.1 l/hour
Power at rated PTO speed349.09 hp
260.3 kW
Fuel use20.4 gal/hour
77.2 l/hour
Drawbar performance
Max power397.87 hp
296.7 kW
Fuel use26.3 gal/hour
99.5 l/hour
Gear 7 used for power test.
Max pull53737 lbs
24375 kg
Gear 1 used for pull test.
