Minneapolis 22-44
|
|
| Production | |
| Manufacturer | Minneapolis (a part of Minneapolis Threshing Machine Company) |
| Standard-tread tractor | |
| Built in Hopkins, Minnesota, USA | |
| Minneapolis 22-44 Engine | |
| Minneapolis Threshing Machine 13.0L 4-cyl kerosene | |
| Fuel tank | 30 gal 113.6 L |
| Aux. fuel | 9 gal 34.1 L |
 Engine details ... | |
| Minneapolis 22-44 Transmission | |
| 2-speed gear | |
 Transmission details ... |
| Minneapolis 22-44 Power | |
| Drawbar (claimed) | 22 hp 16.4 kW |
| Belt (claimed) | 44 hp 32.8 kW |
| Plows | 4-6 (14-inch) |
| Drawbar (tested) | 33.21 hp 24.8 kW |
| Belt (tested) | 46.04 hp 34.3 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Final drives | spur gear |
| Manual steering | |
| Steel canopy. | |
| Photos | |
 | |
 Minneapolis 22-44 photos... | |
| Dimensions & Tires | |
| Wheelbase | 109.5 inches 278 cm |
| Weight | 12000 lbs 5443 kg |
| Front tire | 38x8 |
| Rear tire | 66x20 |
 Full dimensions and tires ... | |
| 22-44 Serial Number Location | |
 | |

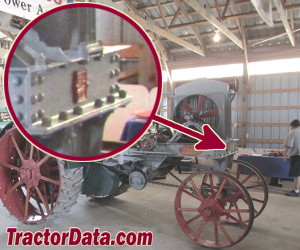

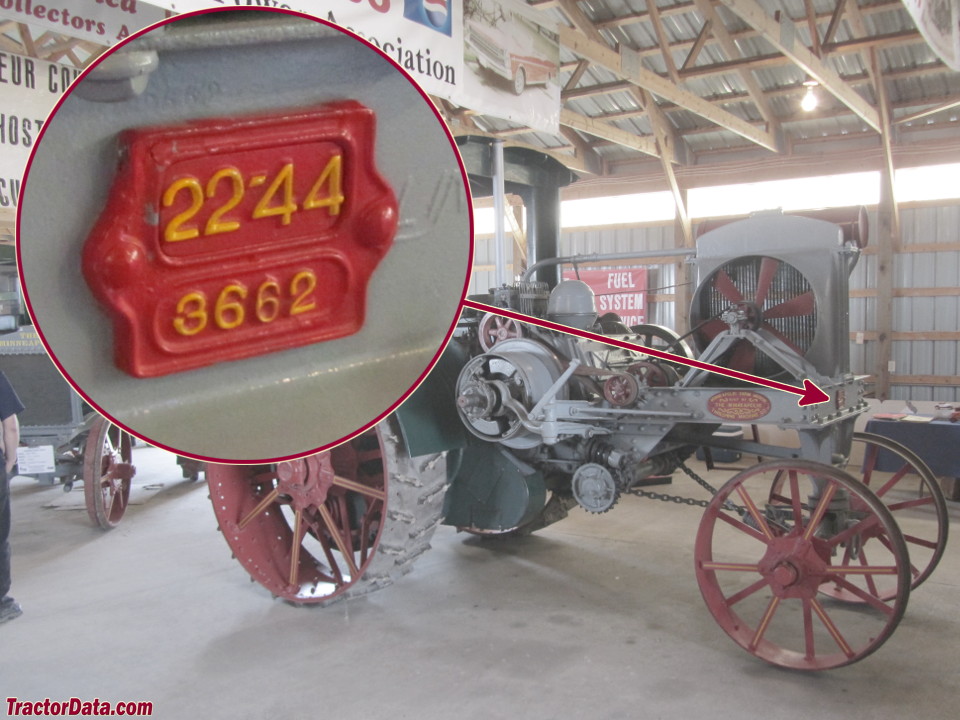

| Serial number plate on the front frame of the tractor. |
| Belt Pulley | |
| Diameter | 20 inches 50 cm |
| Width | 10 inches 25 cm |
| RPM | 700 |
