Minneapolis 17-30 B

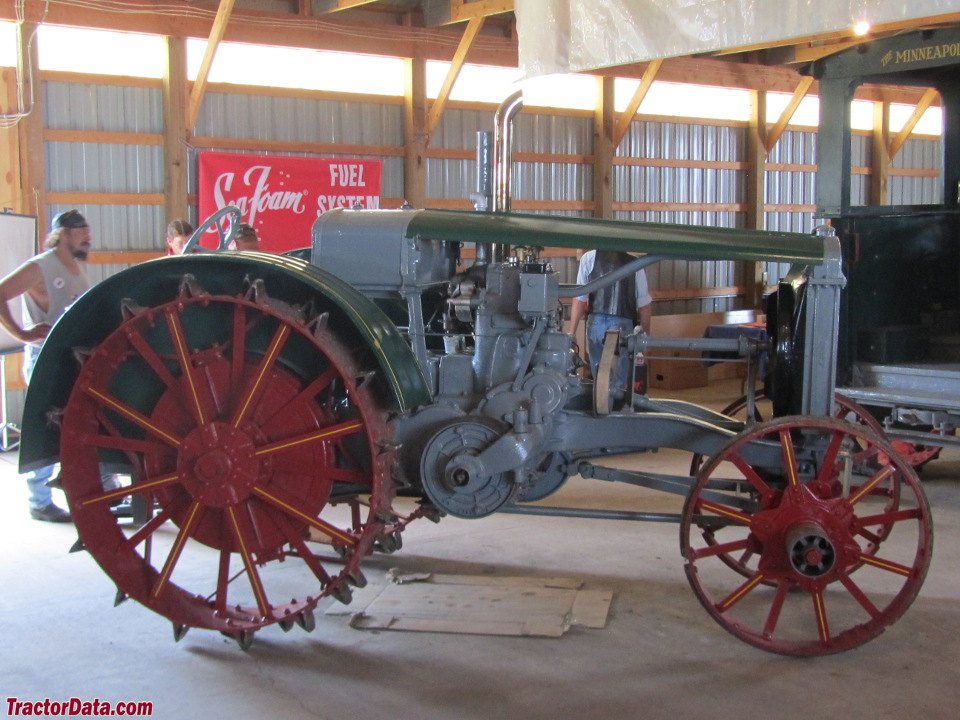

Minneapolis 17-30 B tractor photo
1925 - 1929
Standard-tread tractor
Manufacturer:Minneapolis (a part of Minneapolis Threshing Machine Company)
Type:Standard-tread tractor
Factory:Hopkins, Minnesota, USA
Minneapolis 17-30 B Power
Drawbar (claimed):17 hp
12.7 kW
Belt (claimed):30 hp
22.4 kW
Plows:4 (14-inch)
Drawbar (tested):22.37 hp
16.7 kW
Belt (tested):34.76 hp
25.9 kW
power test details ...
Minneapolis 17-30 B Engine
Minneapolis Threshing Machine 8.6L 4-cyl kerosene
Fuel tank:18 gal
68.1 L
Aux. fuel:6 gal
22.7 L
Engine details ...
Chassis:4x2 2WD
Cab:Open operator station.
Transmission:2-speed gear
Transmission details ...
Dimensions & Tires
Wheelbase:90.75 inches
230 cm
Weight:6800 lbs
3084 kg
Front tire:36x5
Rear tire:54x12
Full dimensions and tires ...
17-30 B Serial Numbers

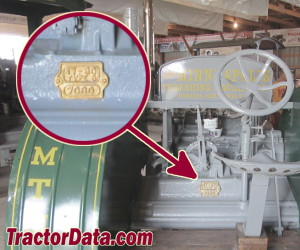

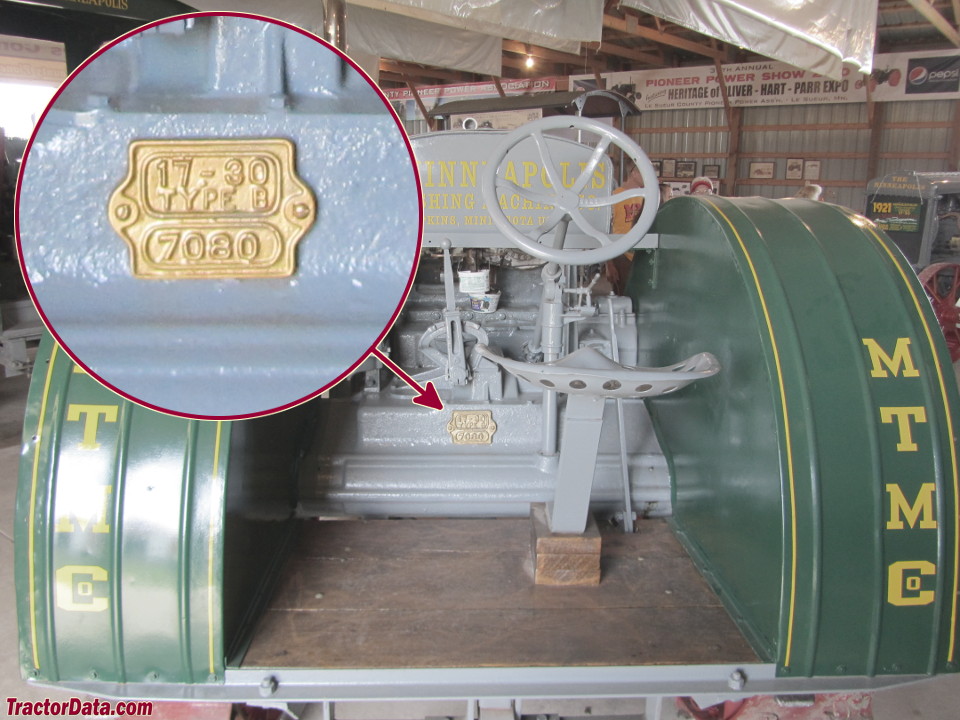

photo of 17-30 B serial number

Belt Pulley
Diameter:15.5 inches
39 cm
Width:7.5 inches
19 cm
