Tractors > Minneapolis > 17-30 A

Minneapolis 17-30 A

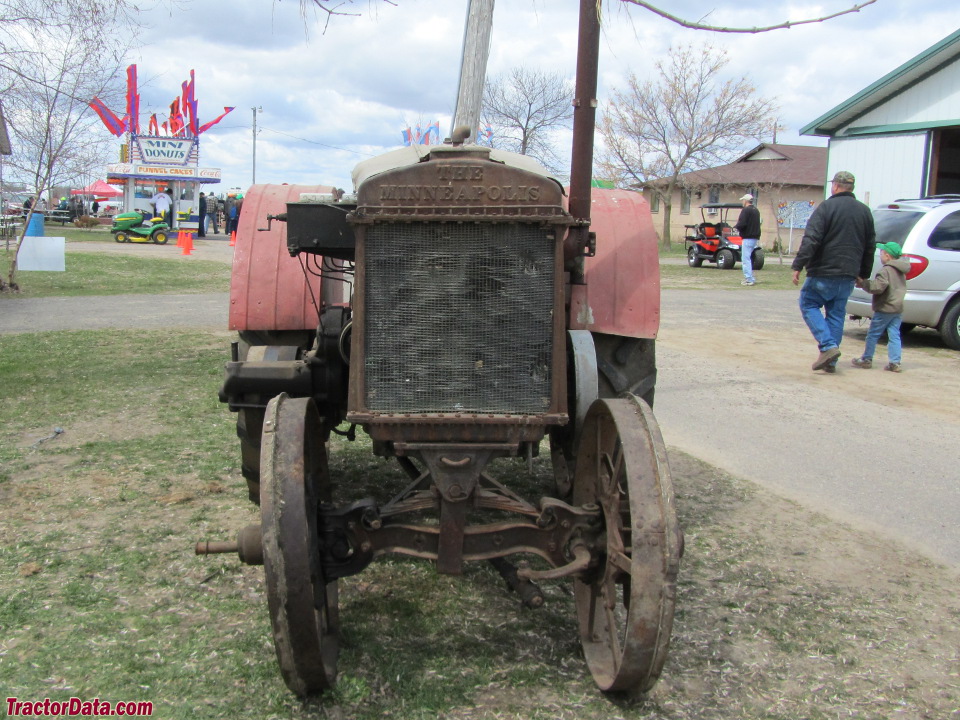

Minneapolis 17-30 A tractor photo
1918 - 1928
Standard-tread tractor






Production:

Manufacturer:Minneapolis Threshing Machine Company
Factory:Hopkins, Minnesota, USA


Minneapolis 17-30 A Engine:

   Minneapolis Threshing Machine 8.1L 4-cyl kerosene
full engine details ...


Capacity:

Fuel:18 gal [68.1 L]
Aux. fuel:6 gal [22.7 L]


Dimensions & Tires:

Wheelbase:80.5 inches [204 cm]
Weight:6100 lbs [2766 kg]
Front tire:36x5
Rear tire:54x12
full dimensions and tires ...


17-30 A Serial Numbers:

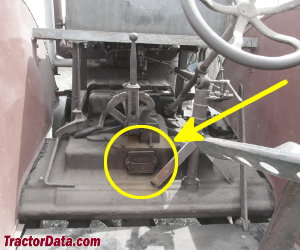

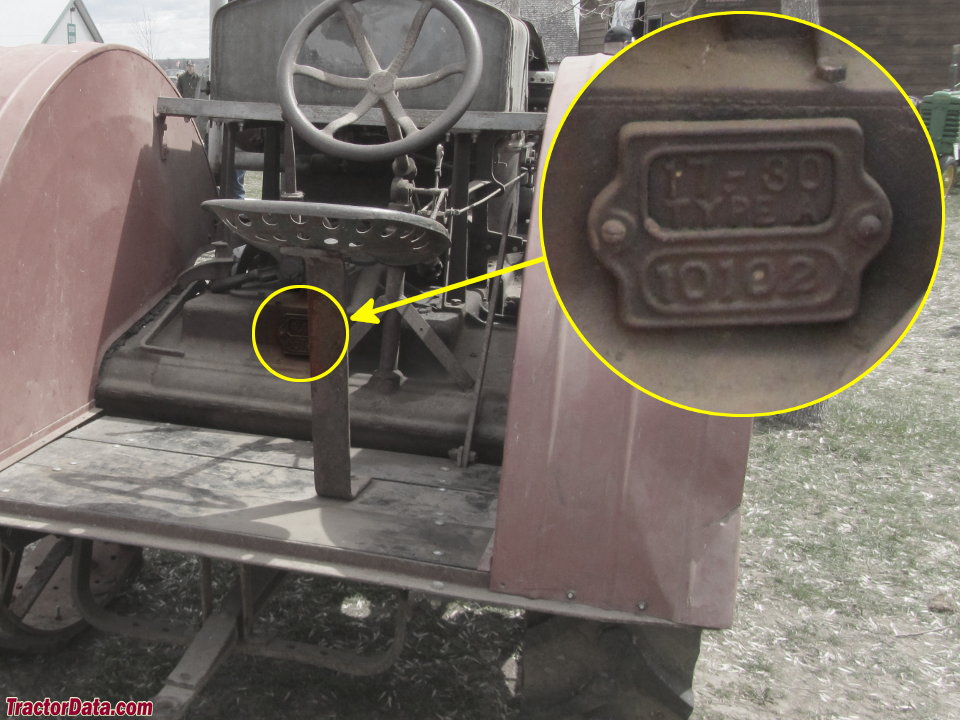

Location:Serial number plate at forward end of operator station.

- Serial numbers unknown -



Minneapolis 17-30 A Power:

Drawbar (claimed):17 hp [12.7 kW]
Belt (claimed):30 hp [22.4 kW]
Plows:3 (14-inch)
Drawbar (tested):19.69 hp [14.7 kW]
Belt (tested):31.95 hp [23.8 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:15.5 inches [39 cm]
Width:7.5 inches [19 cm]
RPM:825
