Tractors > Massey-Harris > 22 Standard

Massey-Harris 22 Standard

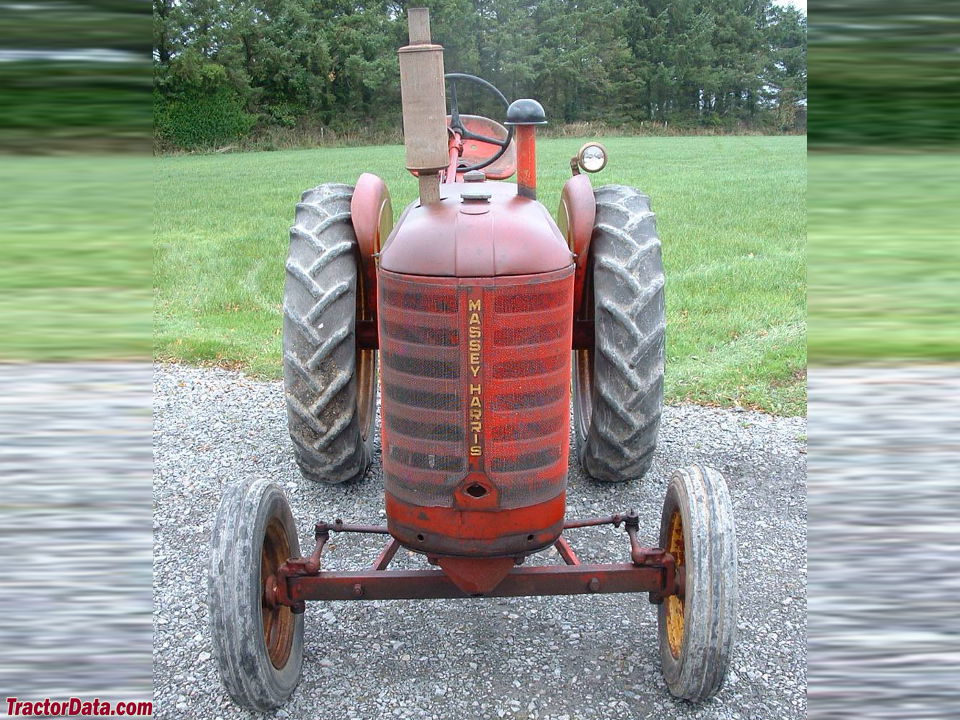

Massey-Harris 22 Standard tractor photo
1948 - 1953
Standard-tread tractor
Previous model:Massey-Harris 20






Production:

Manufacturer:Massey-Harris
Factory:Racine, Wisconsin, USA


Variants:

22 RC:row-crop
22 STD:standard tread


Massey-Harris 22 Engine:

   Continential 2.3L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:13 gal [49.2 L]
Hydraulic system:1.75 gal [6.6 L]


Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Wheelbase:74.75 inches [189 cm]
Weight:2710 lbs [1229 kg]
Front tire:5x15
Rear tire:10x28
full dimensions and tires ...


22 Serial Numbers:

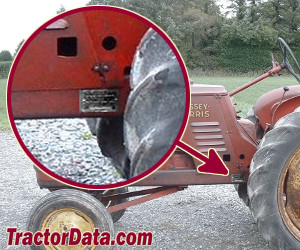

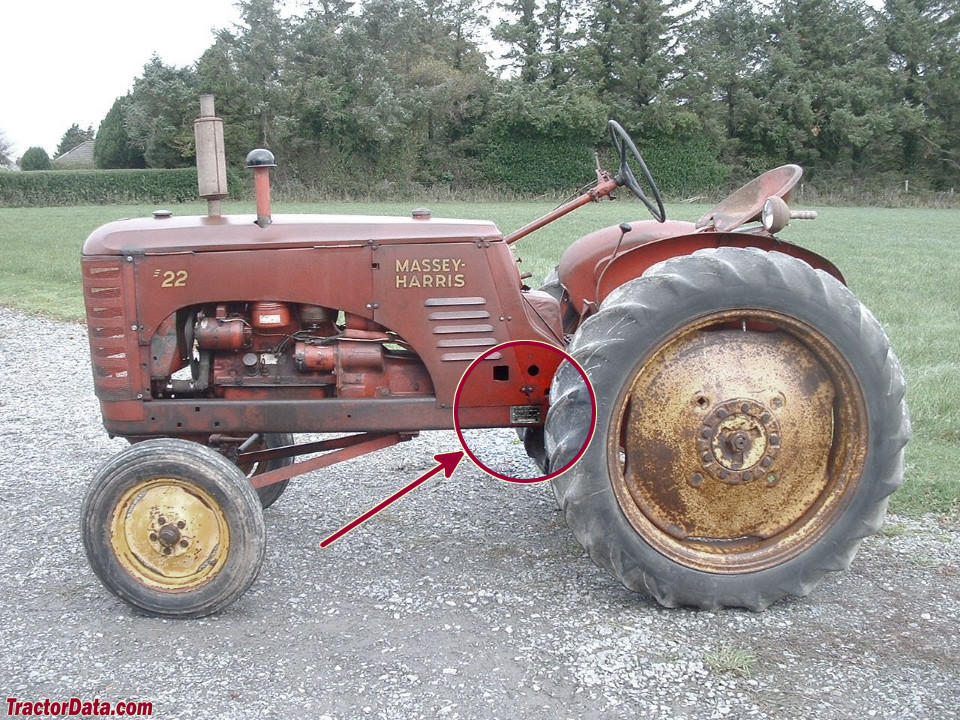

Location:Left side of tractor frame.
photo of 22 serial number

1948: 1001
1949: 1542
1950: 3208
1951: 4533
1952: 5717
1953: 20046

how to read serial numbers...



Massey-Harris 22 Power:

Drawbar (claimed):18 hp [13.4 kW]
PTO (claimed):27 hp [20.1 kW]
Plows:2
Drawbar (tested):22.87 hp [17.1 kW]
Belt (tested):31.05 hp [23.2 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Hydraulics:

Capacity:1.75 gal [6.6 L]
Pump flow:7.5 gpm [28.4 lpm]
