Shibaura SD5040T Transmission

Shibaura SD5040T tractor photo
1977 - 1980
SD Series
Compact Utility tractor
Gears:24 forward and 8 reverse
Clutch:dry disc
Oil capacity:37 qts
35.0 L
Three gears, plus reverse, in four ranges. Tractor must be stopped, and clutch used, to shift gears and range. Additional creeper range doubles the number of available speeds.
With 12.4/11-28 rear tires. Creeper speeds are 13% of standard speeds.

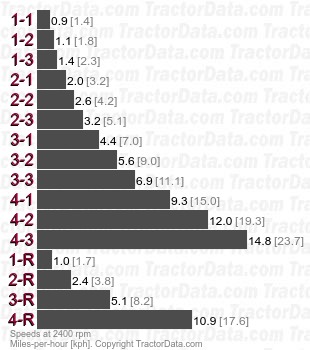

SD5040T  gear speeds
