Shibaura SD4340 Transmission


Shibaura SD4340 tractor photo
1977 - 1980
SD Series
Compact Utility tractor
Transmission
Type:gear
Gears:24 forward and 8 reverse
Clutch:dry disc
Oil capacity:37 qts
35.0 L
Three gears, plus reverse, in four ranges. Tractor must be stopped, and clutch used, to shift gears and range. Additional creeper range doubles the number of available speeds.

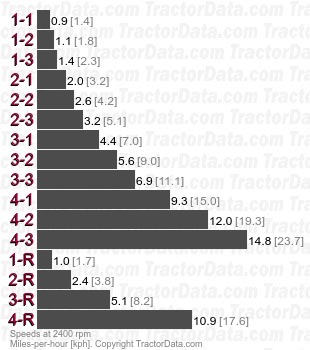

Speeds
With 12.4/11-28 rear tires. Creeper speeds are 13% of standard speeds.
SD4340  gear speeds
