CaseIH Steiger 540 Quadtrac

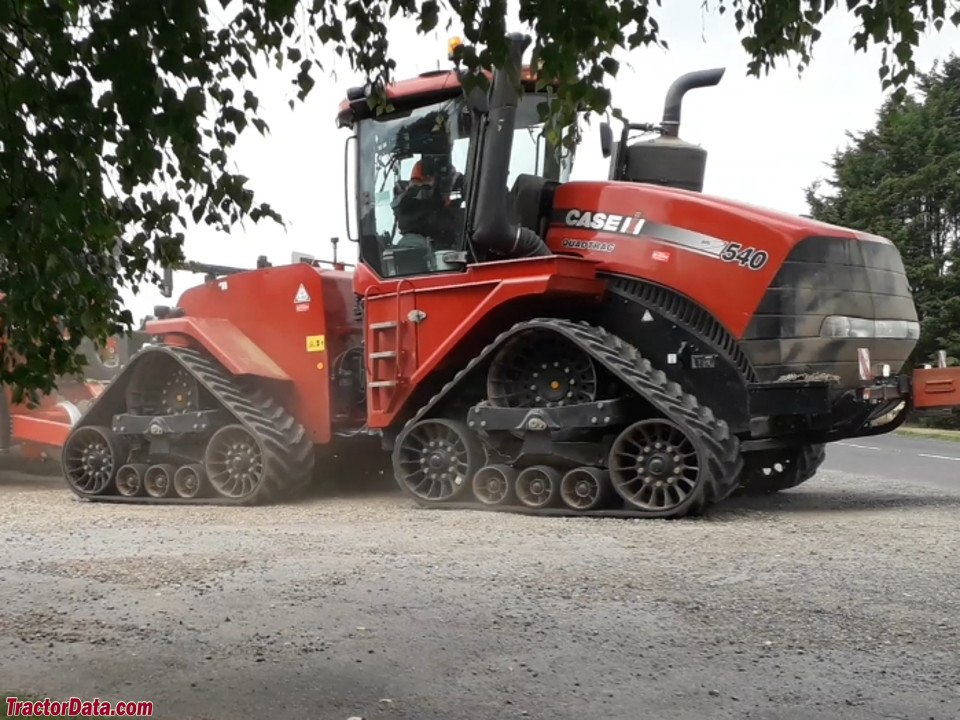

CaseIH Steiger 540 Quadtrac tractor photo
2014 - 2023
Steiger Quadtrac Series
Articulated Crawler tractor
Series map:
Steiger 500 Quadtrac
Steiger 540 Quadtrac
Steiger 580 Quadtrac
500.0hp
535.0hp
580.0hp
Production
ManufacturerCaseIH (a part of CNH)
Articulated Crawler tractor
Built in Fargo, North Dakota, USA
Original price was $514,789 in 2015
Variants
540wheeled tractor
540QTcrawler tractor
CaseIH Steiger 540 Quadtrac Engine
FPT 12.9L 6-cyl diesel
Fuel tank310 gal
1173.4 L
Exhaust fluid (DEF)85 gal
321.7 L
Engine details ...
CaseIH Steiger 540 Quadtrac Power
Engine535 hp
398.9 kW
PTO (claimed)473 hp
352.7 kW
Mechanical
Drivearticulated crawler
Final drivesplanetary
Steeringhydraulic articulated
Brakeshydraulic wet disc
 engine brake *Optional.
Trailer brakeshydraulic *Optional.
Surveyor Cab standard with air-conditioning.
Hydraulics
Typepressure flow compensated
Valves4 to 8
Pump flow42 gpm
159.0 lpm
 57 gpm*High Flow option
215.7 lpm
 113 gpm*TwinFlow option
427.7 lpm
SCV flow35 gpm
132.5 lpm
Tractor hitch
Rear TypeIVN
Rear lift (at 24"/610mm)19728 lbs
8948 kg
Rear Armsquick coupler
DrawbarCat. 4
 Cat. 5 OptOptional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 *1.75 inch shaft
Dimensions & Tracks
Wheelbase154 inches
391 cm
Weight47780 lbs
21673 kg
30-inch tracks
Full dimensions and tracks ...
Electrical
Groundnegative
Charging systemalternator
Charging amps240
Batteries2
Battery CCA1000
Battery volts12
References
Steiger 540 Quadtrac references literature
Steiger 370-620 Tractors published in 2014, by CaseIH
