Tractors > Kubota > M5660SU

Kubota M5660SU

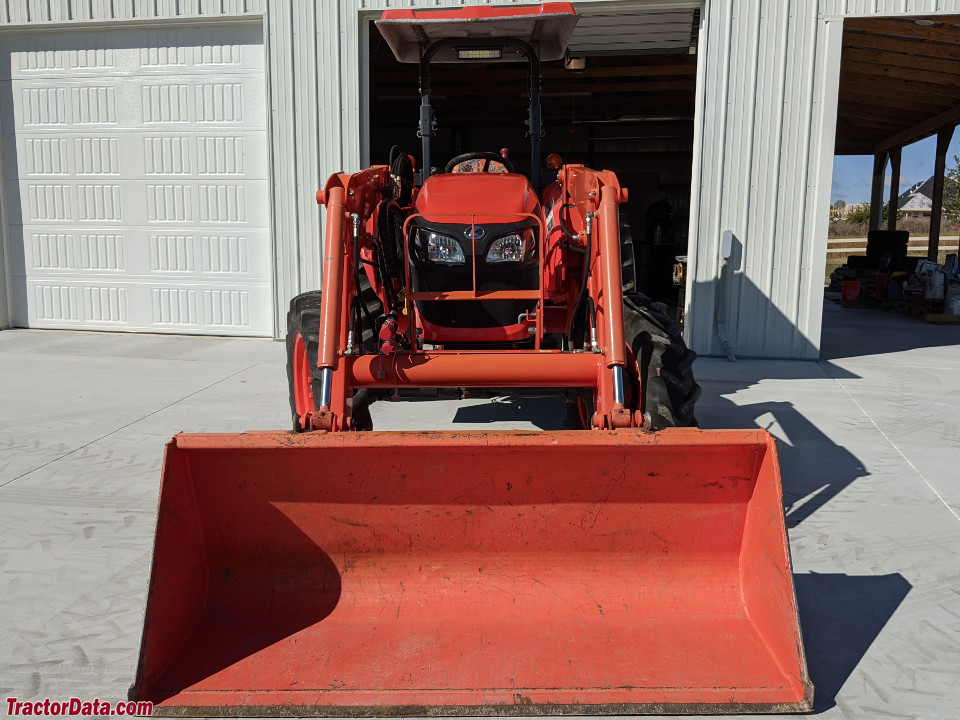

Kubota M5660SU tractor photo
2015 -
Utility tractor






Production:

Manufacturer:Kubota


Variants:

M5660SUH:2WD
M5660SUHD:4WD


Kubota M5660SU Engine:

   Kubota 2.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:17.7 gal [67.0 L]


3-Point Hitch:

Rear Type:II/I
Control:position control
Rear lift (at 24"/610mm):3307 lbs [1500 kg]
Rear Arms:telescoping lower links


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540 (1.375)
 540/540E (1.375)


Dimensions & Tires:

2WD Wheelbase:82 inches [208 cm]
4WD Wheelbase:80.7 inches [204 cm]
Weight:4189 to 4387 pounds
Front tire:6.5-16
2WD Rear tire:14.9-28
full dimensions and tires ...


M5660SU Serial Numbers:


- Serial numbers unknown -



Kubota M5660SU Power:

Engine (gross):57.9 hp [43.2 kW]
Engine (net):56 hp [41.8 kW]
PTO (claimed):50 hp [37.3 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Valves:1 to 3
Pump flow:10.6 gpm [40.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:45


Battery:

Volts:12
