Tractors > CaseIH > 585XL

CaseIH 585XL - transmission

CaseIH 585XL tractor photo
1985 - 1990   85 Series
Utility tractor
Series next:CaseIH 685XL
Series back:CaseIH 485XL
more CaseIH 585XL specifications...






Transmission:

Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:280mm dry disc
Four synchronized gears in two ranges, plus reverse range.
Speeds:

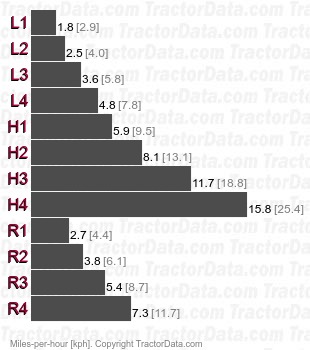

585XL  synchromesh speeds


Transmission:

Transmission:Torque Amplifier
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:280mm dry disc
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed.
Speeds:

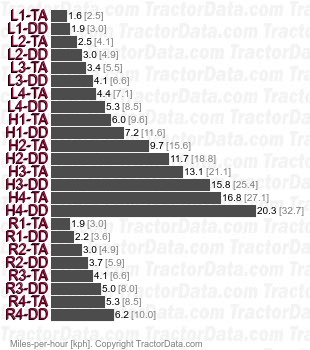

585XL Torque Amplifier two-speed power shift speeds
