Kubota L1-235

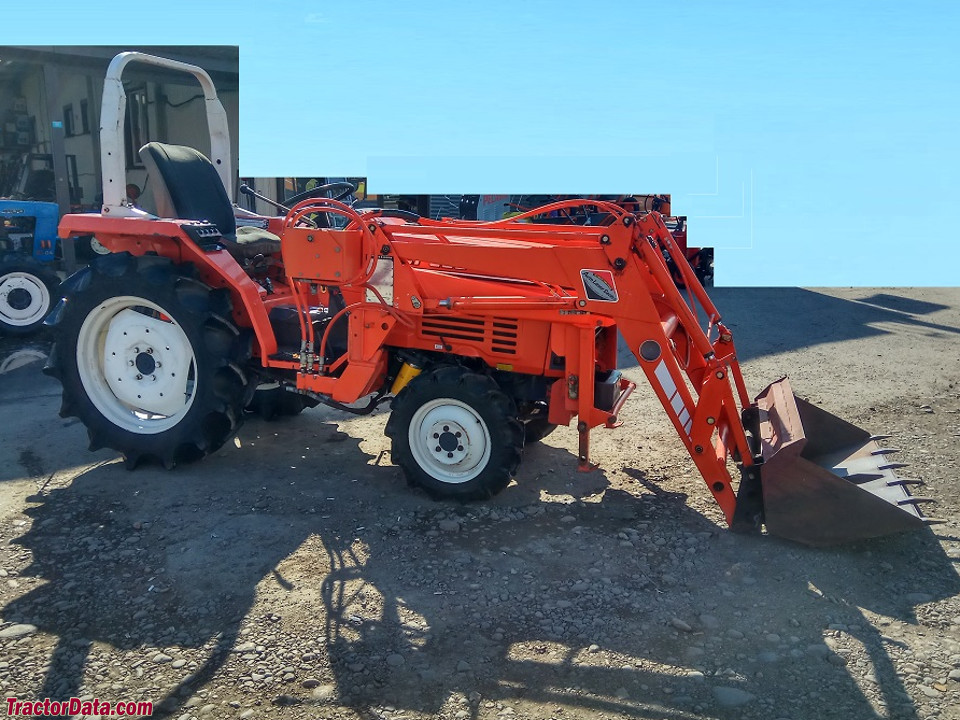

Kubota L1-235 tractor photo
1986 - 1988
L1 Series
Compact Utility tractor
L1-225
Series:L1-215L1-235L1-255
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Variants
L1-235DT:4WD
Kubota L1-235 Power
Engine:22.7 hp
16.9 kW
Kubota L1-235 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank:7.7 gal
29.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:wet disc
Cab:Open operator station.
Transmission:16-speed shuttle
Transmission details ...
Tractor hitch
Rear Type:I
Power Take-off (PTO)
Rear RPM:540/770/940/1250
Dimensions & Tires
Wheelbase:61 inches
154 cm
Weight:2105 to 2227 pounds
Front tire:4.00-15
2WD Rear tire:9.5-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
