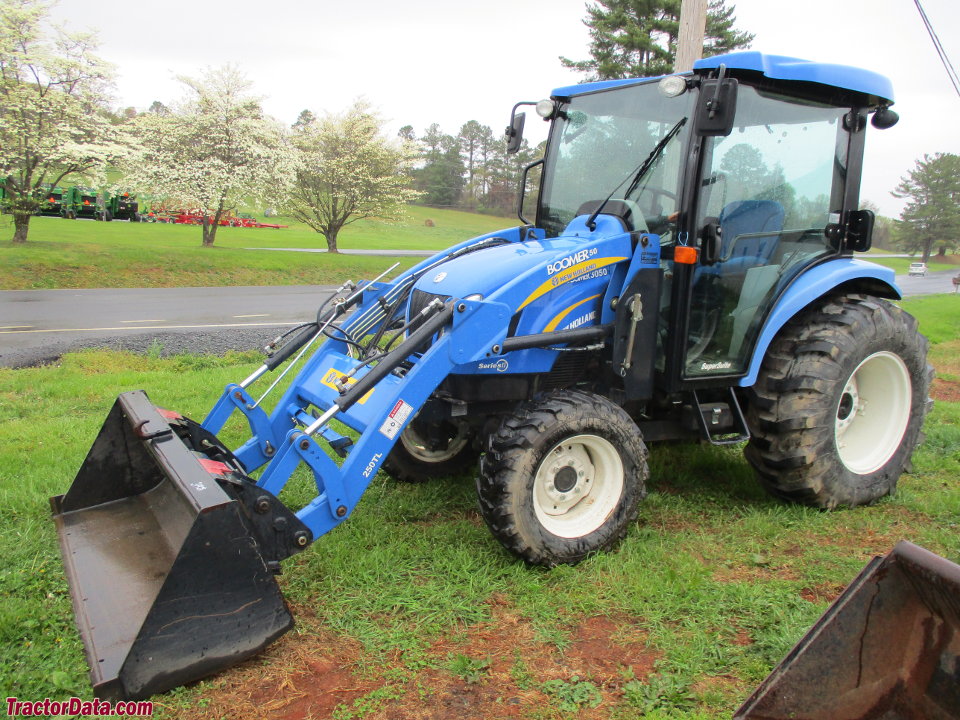

New Holland Boomer 3050 Series II
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Compact Utility tractor | |
| New Holland Boomer 3050 Engine | |
| Shibaura 2.2L 4-cyl diesel | |
| Fuel tank | 13 gal 49.2 L |
 Engine details ... | |
| New Holland Boomer 3050 Transmission | |
| continuously variable transmission | |
 Transmission details ... |
| New Holland Boomer 3050 Power | |
| Engine (gross) | 50 hp 37.3 kW |
| PTO (claimed) | 40 hp 29.8 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Power steering | |
| Wet disc brakes | |
| SuperSuite Cab standard with air-conditioning. | |
| Hydraulics | |
| Type | open center |
| Pump flow | 9.8 gpm 37.1 lpm |
| Steering flow | 5.4 gpm*Operator manual states 5.4, the sales literature states 5.1 20.4 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | top link draft sensing |
| Rear lift (at ends) | 3541 lbs 1606 kg |
| Rear lift (at 24"/610mm) | 2800 lbs 1270 kg |
| Rear Arms | telescoping stabilizers with flexible link ends |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear RPM | 540 (1.375) |
| Mid PTO | independent *Mid-PTO is optional. |
| Mid RPM | 2000 |
| Dimensions & Tires | |
| Wheelbase | 73.5 inches 186 cm |
| Weight | 4136 to 4349 pounds |
| Front tire | 8.0x16 |
| Rear tire | 14.9x24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 55 |
| 75 *Optional. | |
| Battery volts | 12 |
| References | |
 | |
| Boomer 3000 Series Compact Tractors with SuperSuite Cab published in 2012, by New Holland |
