John Deere 5510 Transmission


John Deere 5510 tractor photo
2000 - 2002
Utility tractor
Carraro built
5500
Series:54105510
5515
Transmissions overview
12-speed partially synchronized
24-speed partially synchronized
24-speed two-speed power shift
Transmission
Type:partially synchronized
Gears:12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

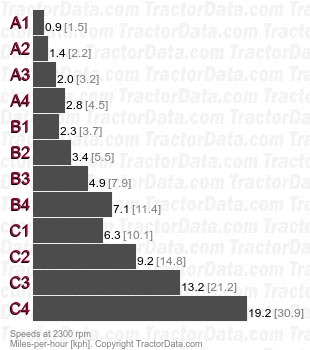

5510  partially synchronized speeds
Transmission
Type:partially synchronized
Gears:24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

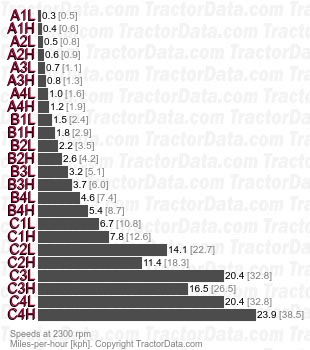

5510  partially synchronized speeds
Transmission
Type:two-speed power shift
Gears:24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and push-button Electro-Hydraulic Hi-Lo. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range ordirection.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.
5510  two-speed power shift speeds
