Antonio Carraro Tigre 4000F

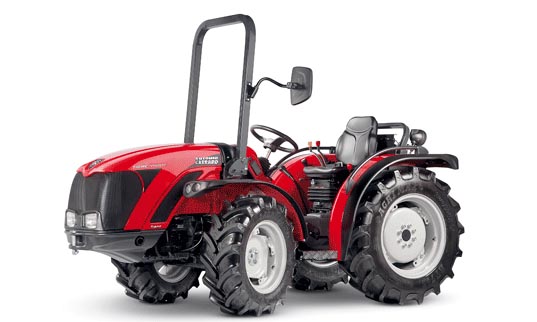

Antonio Carraro Tigre 4000F tractor photo
Compact Utility tractor
Production
Manufacturer:Antonio Carraro
Type:Compact Utility tractor
Factory:Italy
Antonio Carraro Tigre 4000F Power
Engine (gross):38 hp
28.3 kW
Antonio Carraro Tigre 4000F Engine
Yanmar 1.6L 3-cyl diesel
Fuel tank:7.9 gal
29.9 L
Engine details ...
Mechanical
Chassis:4x4 articulated 4WD
Steering:hydraulic power
Cab:Two-post folding ROPS.
Transmission:8-speed gear
Transmission details ...
Photos
No photos of the Antonio Carraro Tigre 4000F are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pressure:2321 psi
160.0 bar
Pump flow:7.9 gpm
29.9 lpm
Tractor hitch
Rear Type:I
Rear lift:2205 lbs
1000 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:48.9 inches
124 cm
Weight:2756 lbs
1250 kg
Front tire:7.50x16
Rear tire:300/70R20
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
