Cletrac F 9-16

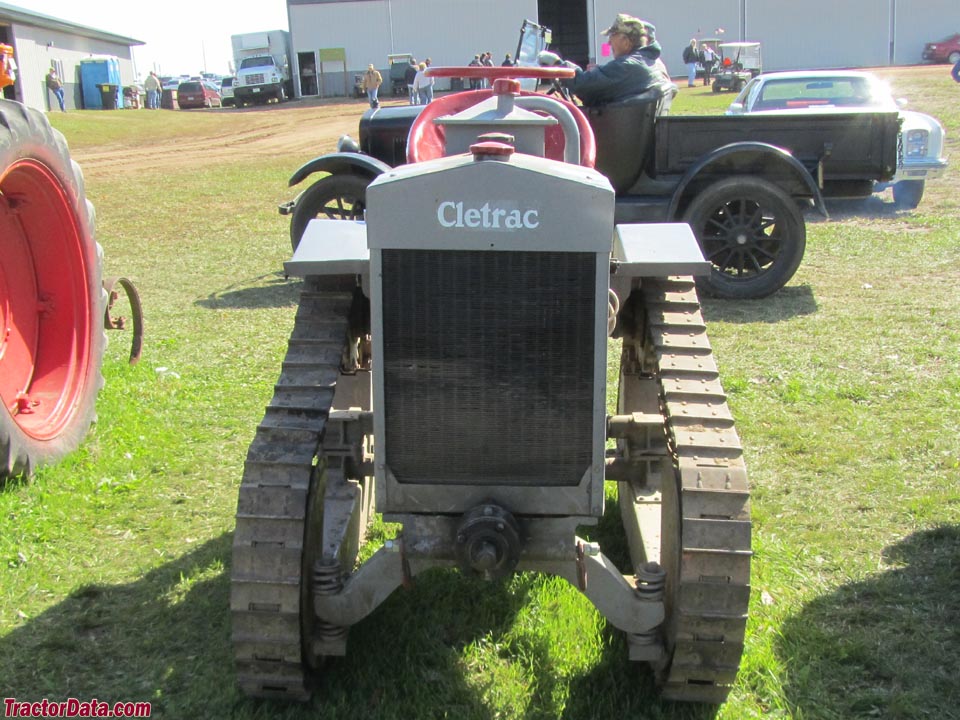

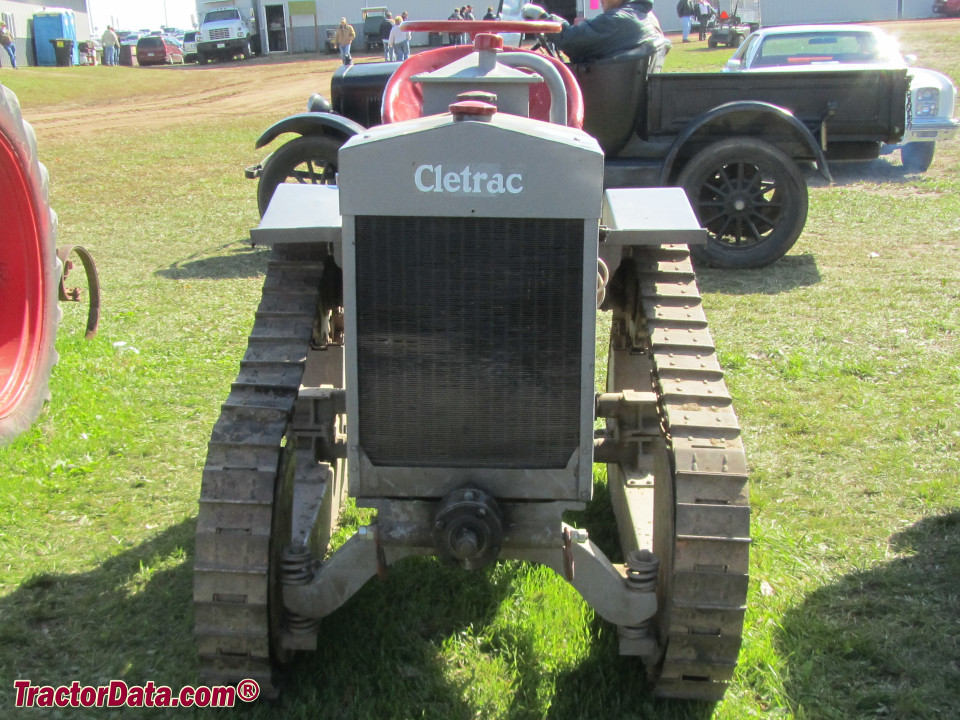

Cletrac F 9-16 tractor photo
1920 - 1922
Agricultural Crawler tractor






Production:

Manufacturer:Cletrac
Factory:Cleveland, Ohio, USA
Original price (USD)
   $595 (1922 )


Cletrac F 9-16 Engine:

   Cletrac 2.4L 4-cyl kerosene
full engine details ...


Capacity:



Dimensions & Tires:

Weight:1865 lbs [845 kg]
Front tire:tracks
Rear tire:tracks
full dimensions and tires ...


F 9-16 Serial Numbers:

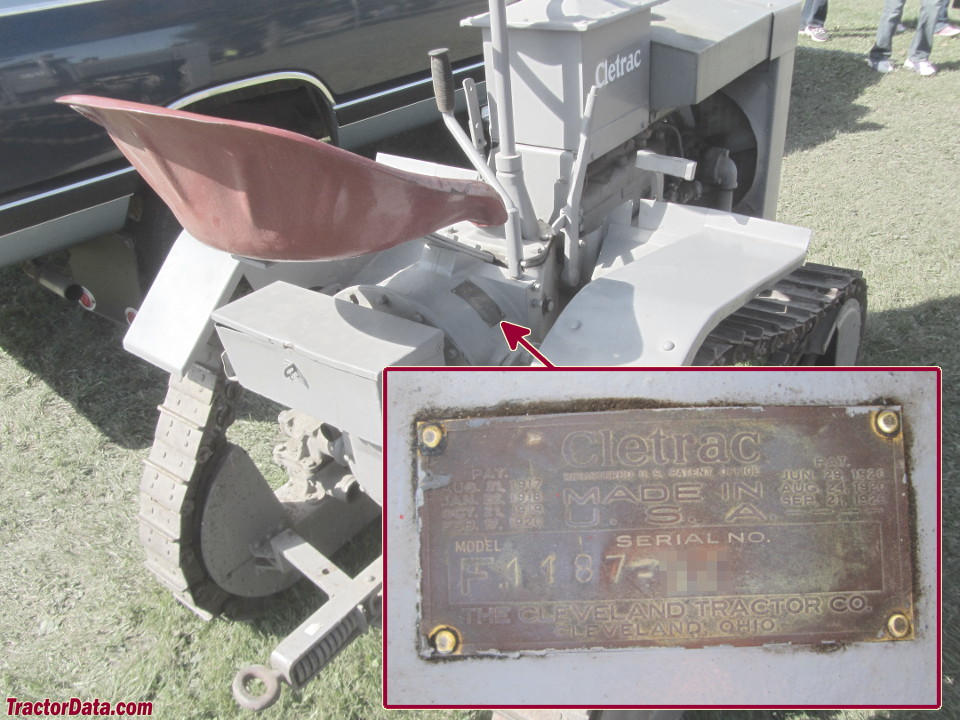

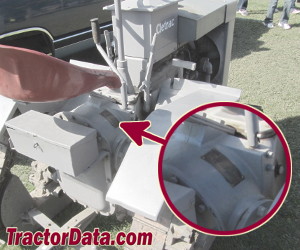

Location:Serial number plate on top of differential housing.

- Serial numbers unknown -



Cletrac F 9-16 Power:

Drawbar (claimed):9 hp [6.7 kW]
Belt (claimed):16 hp [11.9 kW]
Plows:2 (12-inch)
Drawbar (tested):13.145 hp [9.8 kW]
Belt (tested):19.61 hp [14.6 kW]
power test details ...


Mechanical:

Chassis:crawler
Cab:Open operator station.


Belt Pulley:

Diameter:7.5 inches [19 cm]
Width:6 inches [15 cm]
RPM:1600
Speed:3000 ft/min [914.40 meters/min]
