Eagle Manufacturing H 16-30

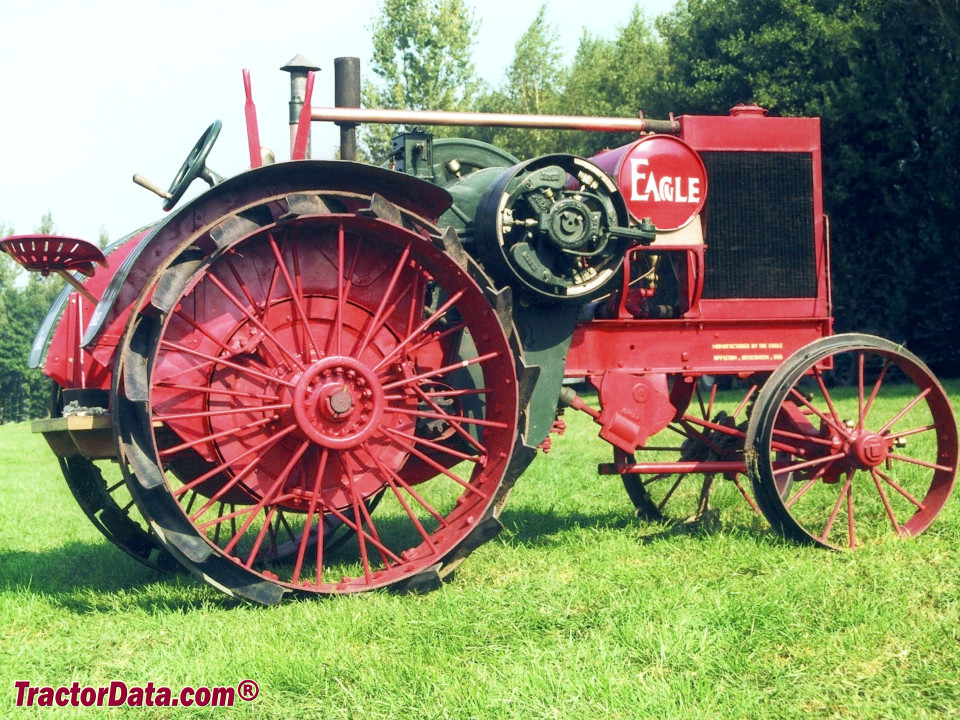

Eagle Manufacturing H 16-30 tractor photo
1922 - 1930
Standard-tread tractor






Production:

Manufacturer:Eagle Manufacturing
Factory:Appleton, Wisconsin, USA


Eagle Manufacturing H 16-30 Engine:

   Eagle Manufacturing 13.2L 2-cyl kerosene
full engine details ...


Capacity:



Dimensions & Tires:

Weight:7100 lbs [3220 kg]
Rear tire:52x12
full dimensions and tires ...


H 16-30 Serial Numbers:


- Serial numbers unknown -



Eagle Manufacturing H 16-30 Power:

Drawbar (claimed):16 hp [11.9 kW]
Belt (claimed):30 hp [22.4 kW]
Plows:4 (14-inch)


Mechanical:

Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:24 inches [60 cm]
Width:10 inches [25 cm]
RPM:450
Speed:2800 ft/min [853.44 meters/min]
