Eagle Manufacturing F 16-30

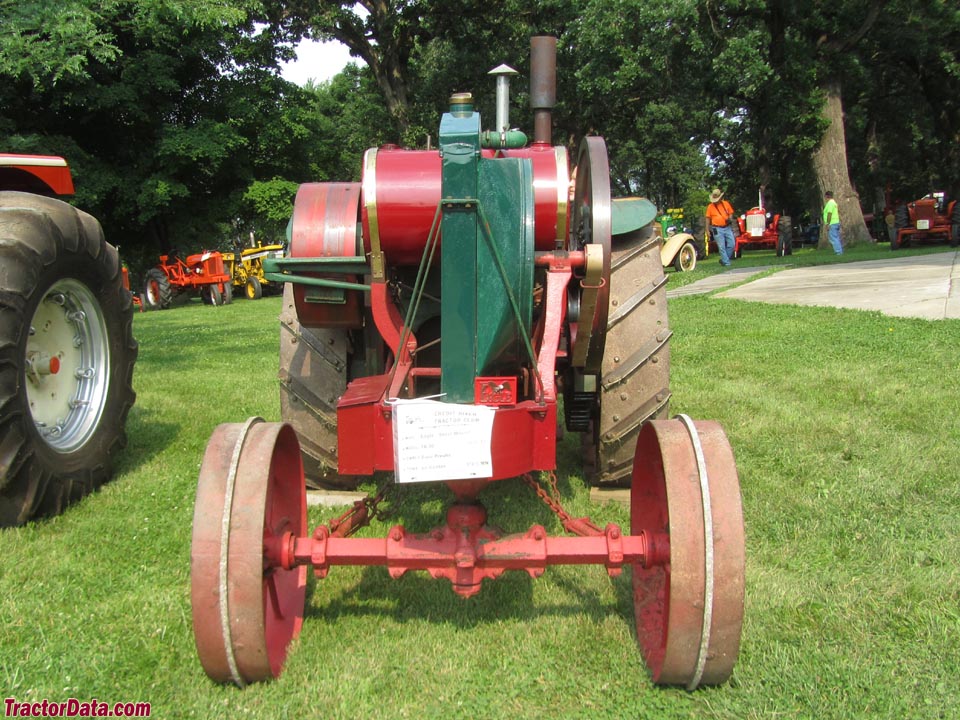

Eagle Manufacturing F 16-30 tractor photo
1916 - 1922
Standard-tread tractor






Production:

Manufacturer:Eagle Manufacturing
Factory:Appleton, Wisconsin, USA


Eagle Manufacturing F 16-30 Engine:

   Eagle Manufacturing 13.2L 2-cyl kerosene
full engine details ...


Capacity:



Dimensions & Tires:

Weight:7100 lbs [3220 kg]
Rear tire:52x12
full dimensions and tires ...


F 16-30 Serial Numbers:

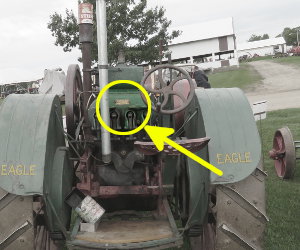

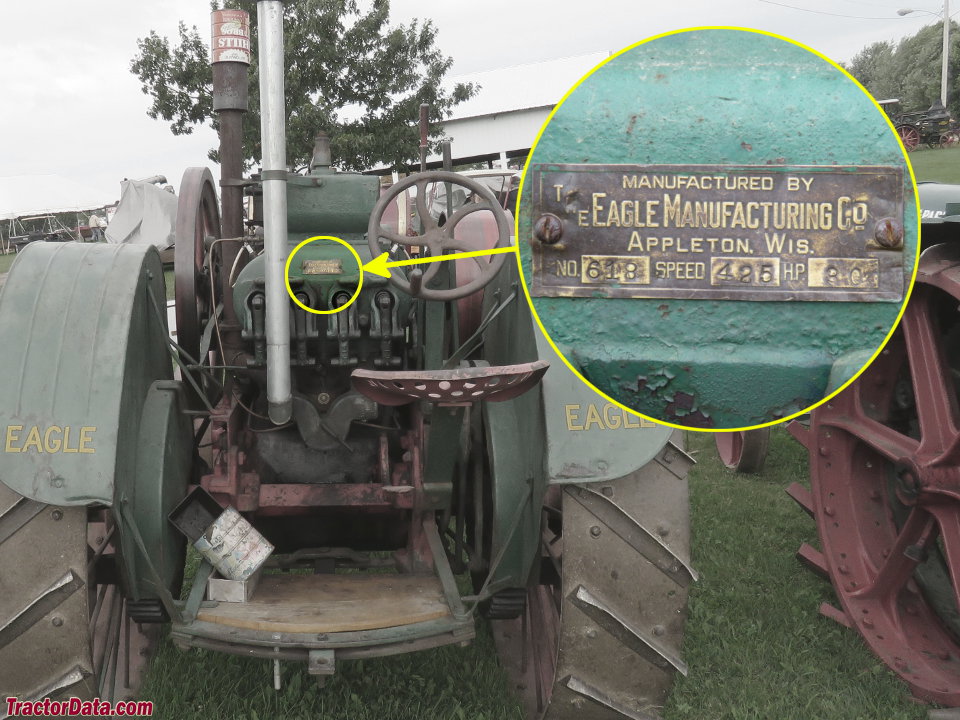

Location:Serial number plate ahead of operator platform.
photo of F 16-30 serial number


how to read serial numbers...



Eagle Manufacturing F 16-30 Power:

Drawbar (claimed):16 hp [11.9 kW]
Belt (claimed):30 hp [22.4 kW]
Plows:4 (14-inch)
Drawbar (tested):19.97 hp [14.9 kW]
Belt (tested):31.80 hp [23.7 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:24 inches [60 cm]
Width:10 inches [25 cm]
RPM:450
Speed:2800 ft/min [853.44 meters/min]
