John Deere 9570R

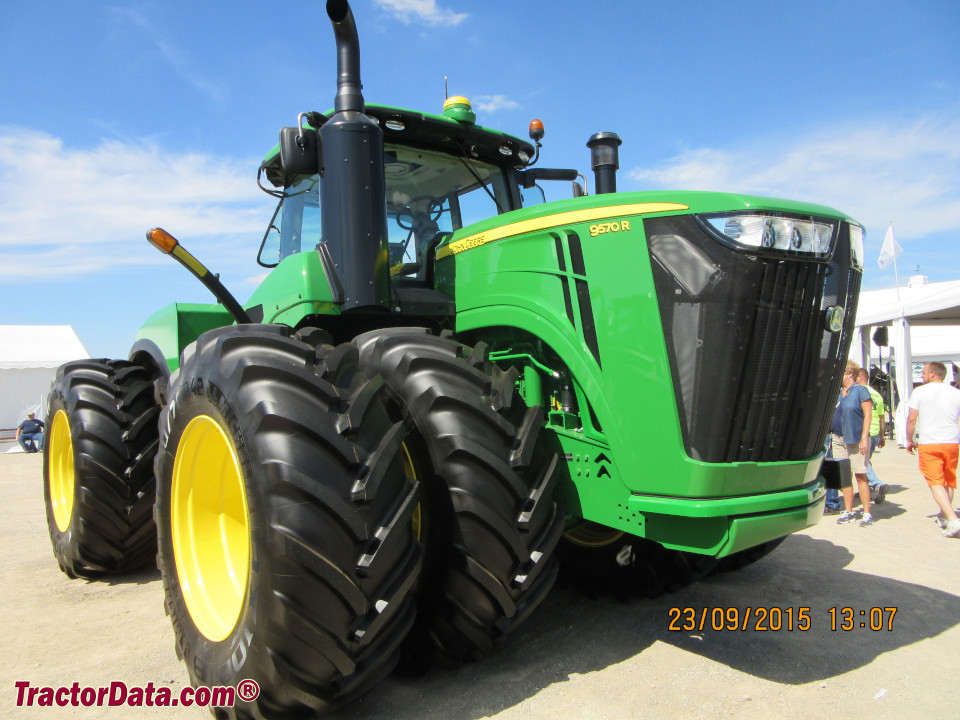

John Deere 9570R tractor photo
2015 -    9R Series
Four-wheel Drive (4WD) tractor
Previous model:John Deere 9560R
Series next:John Deere 9620R
Series back:John Deere 9520R






Production:

Manufacturer:John Deere
Factory:Waterloo, Iowa, USA


Variants:

9570R:wheeled 4WD
9570RT:crawler
9570RX:articulated crawler


John Deere 9570R Engine:

   Cummins 14.9L 6-cyl diesel
full engine details ...


Capacity:

Fuel:400 gal [1514.0 L]
Exhaust fluid (DEF):22 gal [83.3 L]
Hydraulic system:58 gal [219.5 L]
 60 gal [227.1 L] *With hitch and PTO


Drawbar:

Drawbar:Cat. 5


3-Point Hitch:

Rear Type:IV/IVN*Optional
Control:draft sensing
Rear lift:15000 lbs [6804 kg]
 20000 lbs [9072 kg]


Power Take-off (PTO):

Rear PTO:independent*Optional
Clutch:electro-hydraulic
Rear RPM:1000 (1.75)


Dimensions & Tires:

Wheelbase:154 inches [391 cm]
Weight:43550 to 60000 pounds
full dimensions and tires ...


9570R Serial Numbers:


- Serial numbers unknown -



John Deere 9570R Power:

Engine (gross):570 hp [425.0 kW]
Engine (max):628 hp [468.3 kW]
PTO (claimed):335 hp [249.8 kW]


Mechanical:

Chassis:4x4 articulated 4WD
Differential lock:electro-hydraulic front and rear
Steering:articulated power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic*Optional
Cab:Command View Cab III standard with air-conditioning. AutoTrac ready
 ISOBUS 11783


Hydraulics:

Type:closed-center pressure/flow compensated
Capacity:58 gal [219.5 L]
 60 gal [227.1 L] *With hitch and PTO
Pressure:2900 psi [200.0 bar]
Rear valves:4 to 8
Pump flow:58 gpm [219.5 lpm]
 115 gpm [435.3 lpm] *Optional, with second 57GPM pump
SCV flow:35 gpm [132.5 lpm]
 42 gpm [159.0 lpm] *Flow at 19.1mm coupler with high-flow hydraulic option.


Electrical:

Ground:negative
Charging system:alternator
Charging amps:200
 240*Optional
Charging volts:12


Battery:

Number:4
Cold-cranking amps:925
Volts:12
