LS S3010

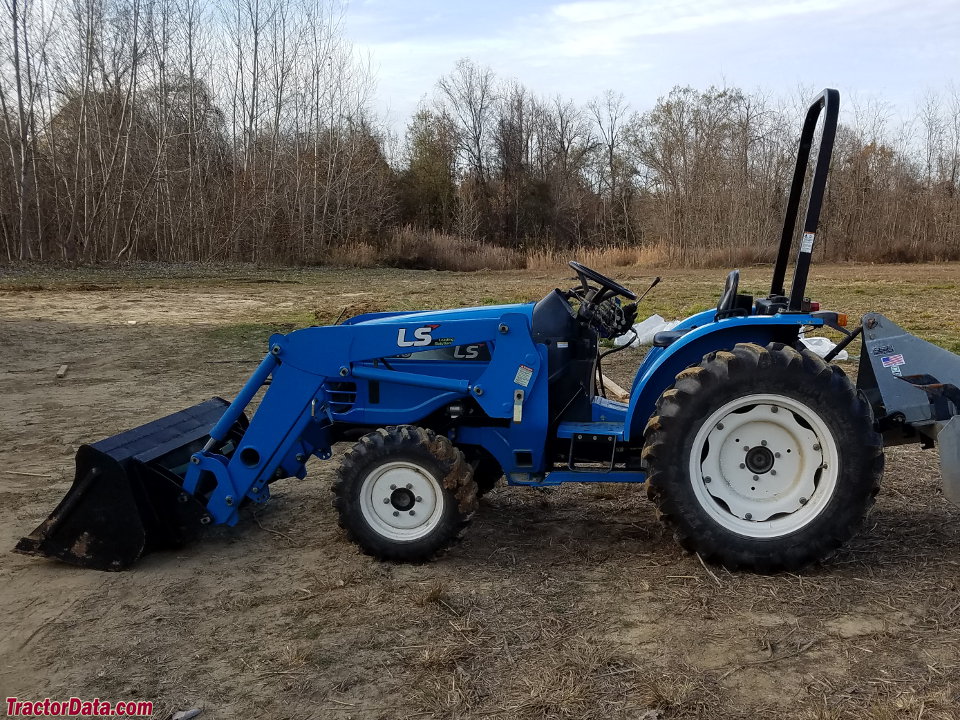

LS S3010 tractor photo
2009 - 2011
Compact Utility tractor
Production
Manufacturer:LS
Type:Compact Utility tractor
LS S3010 Power
Engine (gross):28.5 hp
21.3 kW
PTO (claimed):24 hp
17.9 kW
LS S3010 Engine
Mitsubishi 1.5L 4-cyl diesel
Fuel tank:8.4 gal
31.8 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:8-speed synchro shuttle
Transmission details ...
Hydraulics
Valves:0 to 2
Pump flow:6.2 gpm
23.5 lpm
Total flow:10.3 gpm
39.0 lpm
Steering flow:4.1 gpm
15.5 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:66 inches
167 cm
Weight:2769 lbs
1256 kg
Front tire:7-14
Rear tire:11.2-24
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
