LS K5055

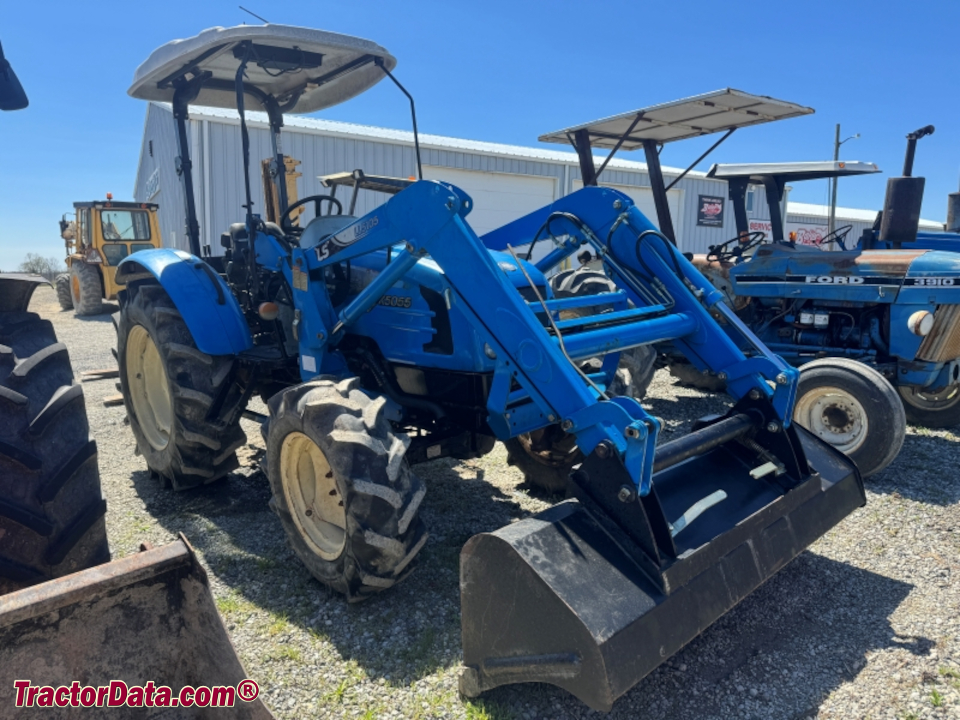

LS K5055 tractor photo
2014 -    K Series
Utility tractor
Series back:LS K5047






Production:

Manufacturer:LS


LS K5055 Engine:

   Mitsibishi 3.3L 4-cyl diesel
full engine details ...


Capacity:

Fuel:22.4 gal [84.8 L]


3-Point Hitch:

Rear Type:II
Control:position and draft control
Rear lift:3526 lbs [1599 kg]


Power Take-off (PTO):

Rear PTO:live (two-stage clutch)
Rear RPM:540 (1.375)


Dimensions & Tires:

Wheelbase:81.5 inches [207 cm] (4WD)
 82.3 inches [209 cm] (2WD)
Weight:4076 to 4453 pounds
Front tire:7.5-16
Rear tire:14.9-30
full dimensions and tires ...


LS K5055 attachments:

 front-end loader
all K5055 attachments ...


K5055 Serial Numbers:


- Serial numbers unknown -



LS K5055 Power:

Engine (gross):55 hp [41.0 kW]
PTO (claimed):48 hp [35.8 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Pump flow:9.9 gpm [37.5 lpm]
Total flow:14.7 gpm [55.6 lpm]
Steering flow:4.8 gpm [18.2 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:50


Battery:

Number:1
Volts:12
