Tractors > Massey-Harris > No. 2 12-22

Massey-Harris No. 2 12-22

Massey-Harris No. 2 12-22 tractor photo
1920 - 1922
Standard-tread tractor
Previous model:Massey-Harris No. 1 12-25
Next model:Massey-Harris No. 3 15-28





The Massey-Harris No. 2 12-22 was based on a tractor design licensed from Parrett.


Production:

Manufacturer:Massey-Harris
Factory:Weston, Ontario, Canada


Massey-Harris No. 2 12-22 Engine:

   Buda 5.1L 4-cyl gasoline
full engine details ...


Capacity:



Dimensions & Tires:

Weight:5400 lbs [2449 kg]
full dimensions and tires ...


No. 2 12-22 Serial Numbers:

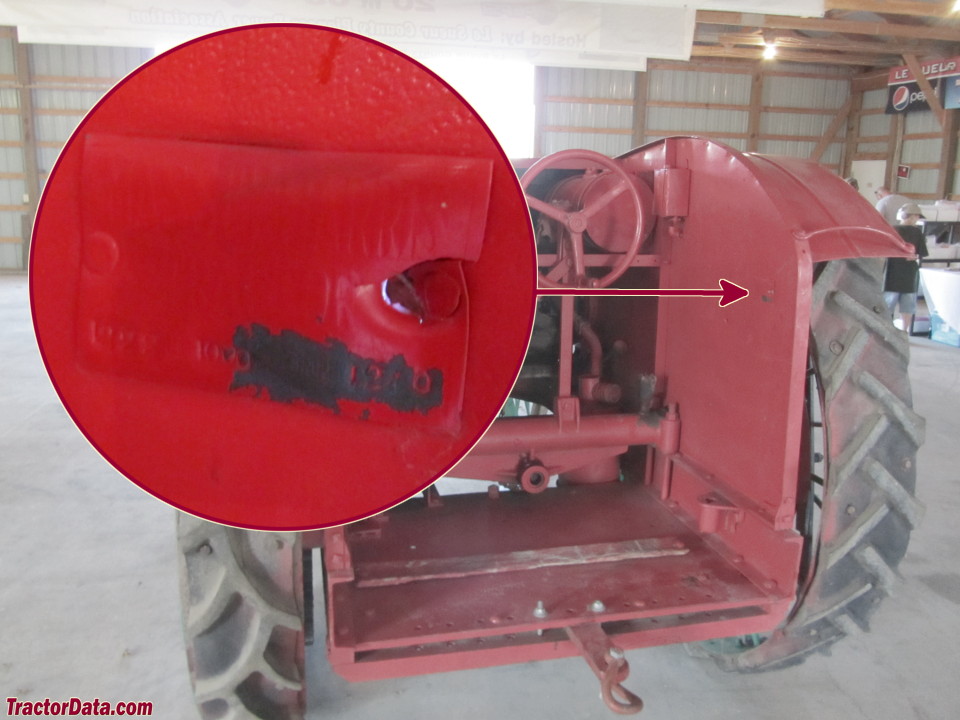

Location:Inside right rear tractor fender.

- Serial numbers unknown -



Massey-Harris No. 2 12-22 Power:

Drawbar (claimed):12 hp [8.9 kW]
Belt (claimed):22 hp [16.4 kW]
Plows:3 (14-inch)


Mechanical:

Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:12 inches [30 cm]
Width:7 inches [17 cm]
RPM:1000
