CaseIH Magnum 310
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| Built in Racine, Wisconin, USA | |
| CaseIH Magnum 310 Engine | |
| CDC 8.9L 6-cyl diesel | |
| Fuel tank | 180 gal 681.3 L |
 Engine details ... | |
| CaseIH Magnum 310 Transmissions | |
| 19-speed full power shift | |
| 23-speed creeper | |
 Transmission details ... |
| CaseIH Magnum 310 Power | |
| Engine (gross) | 309 hp 230.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | planetary |
| Steering | hydrostatic power |
| Surveyor cab standard with air-conditioning. | |

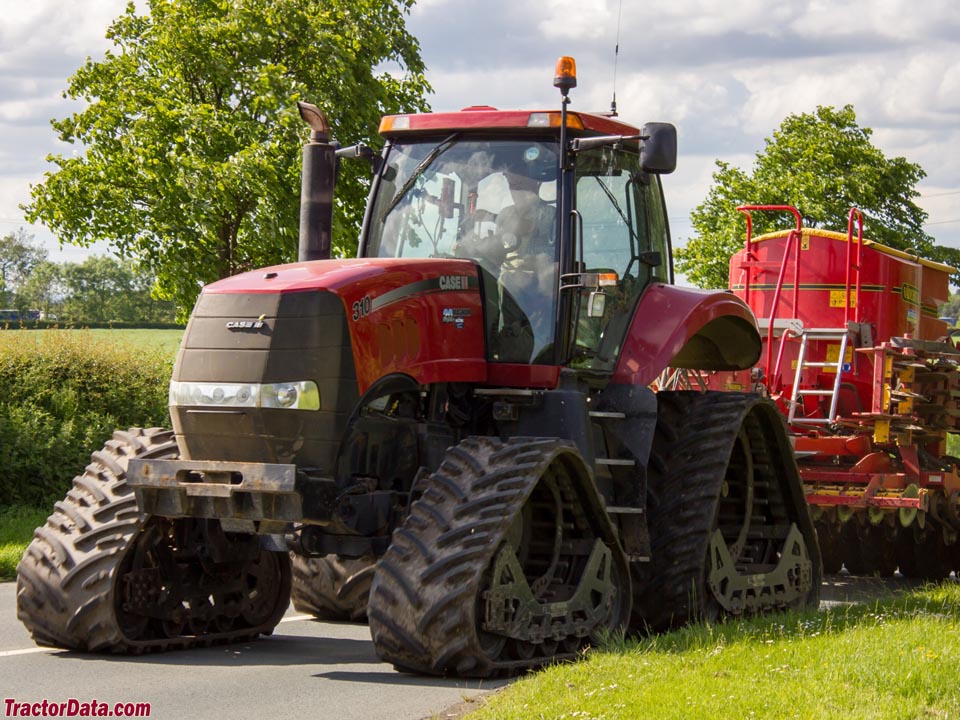

| Photos | |
 | |
 CaseIH Magnum 310 photos... | |
| Hydraulics | |
| Type | pressure flow compensating |
| Valves | 4 or 5 |
| Pump flow | 37.5 gpm (early) 141.9 lpm |
| 43.9 gpm (late) 166.2 lpm | |
| 59.2 gpm (High Flow) 224.1 lpm | |
| 75 gpm (Twin Flow) 283.9 lpm | |
| Tractor hitch | |
| Rear Type | III/IVN |
| Rear lift (at 24"/610mm) | 16360 lbs 7420 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375) | |
| Engine RPM | 1800@1000 |
| Dimensions & Tires | |
| Wheelbase | 118.3 inches 300 cm |
| Weight | 20670 lbs 9375 kg |
| Front tire | 600/65R30 |
| Rear tire | 710/70R42 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Magnum published in 2005, by CaseIH | |
| Magnum Series published in 2008, by CaseIH |
