Versatile 550DT

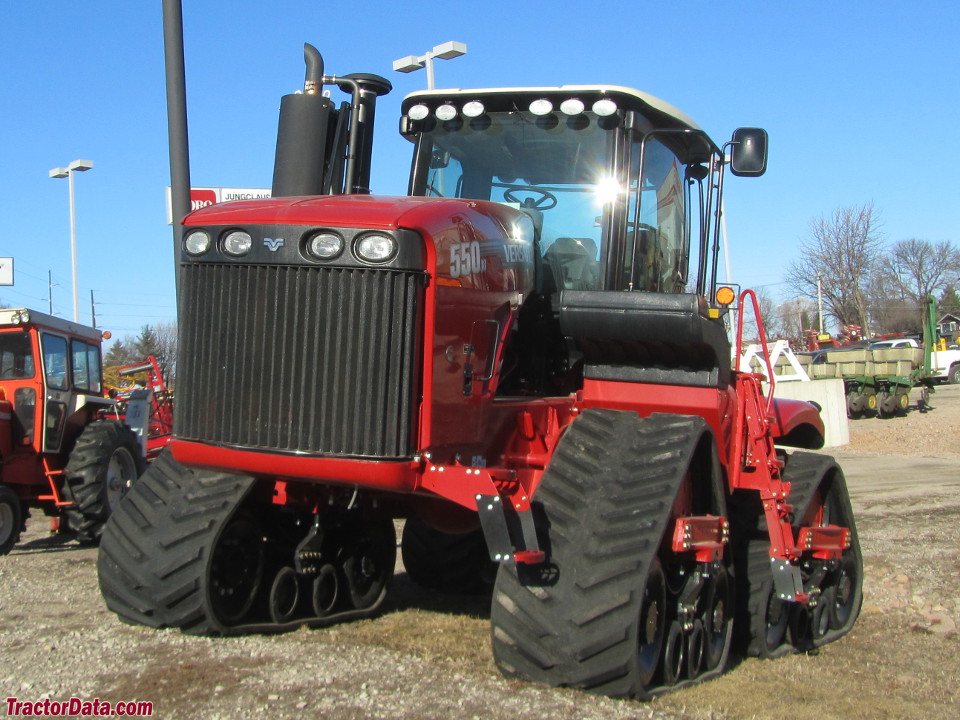

Versatile 550DT tractor photo
2013 - 2017
DeltaTrack Series
Articulated Crawler tractor
Series:500DT550DT
570DT
Production
Manufacturer:Versatile (a part of Rostselmash)
Type:Articulated Crawler tractor
Factory:Winnipeg, Manitoba, Canada
Versatile 550DT Power
Engine:550 hp
410.1 kW
Versatile 550DT Engine
Cummins 14.9L 6-cyl diesel
Fuel tank:475 gal
1797.9 L
Engine details ...
Mechanical
Chassis:crawler
Final drives:outboard planetary
Steering:hydrostatic power
Brakes:dual dry caliper
Cab:Cab standard with air-conditioning.
Transmission:16-speed full power shift
Transmission details ...
Hydraulics
Type:closed center load sensing (CCLS)
Pressure:2900 psi
200.0 bar
Valves:4 to 6
Pump flow:53 gpm
200.6 lpm
 106 gpm
401.2 lpm (optional)
Dimensions & Tracks
Wheelbase:154 inches
391 cm
Weight:58850 lbs
26694 kg
tracks
Full dimensions and tracks ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Charging volts:12
Batteries:3
Battery CCA:950
Battery volts:12
