Tractors > Kubota > M135GX

Kubota M135GX

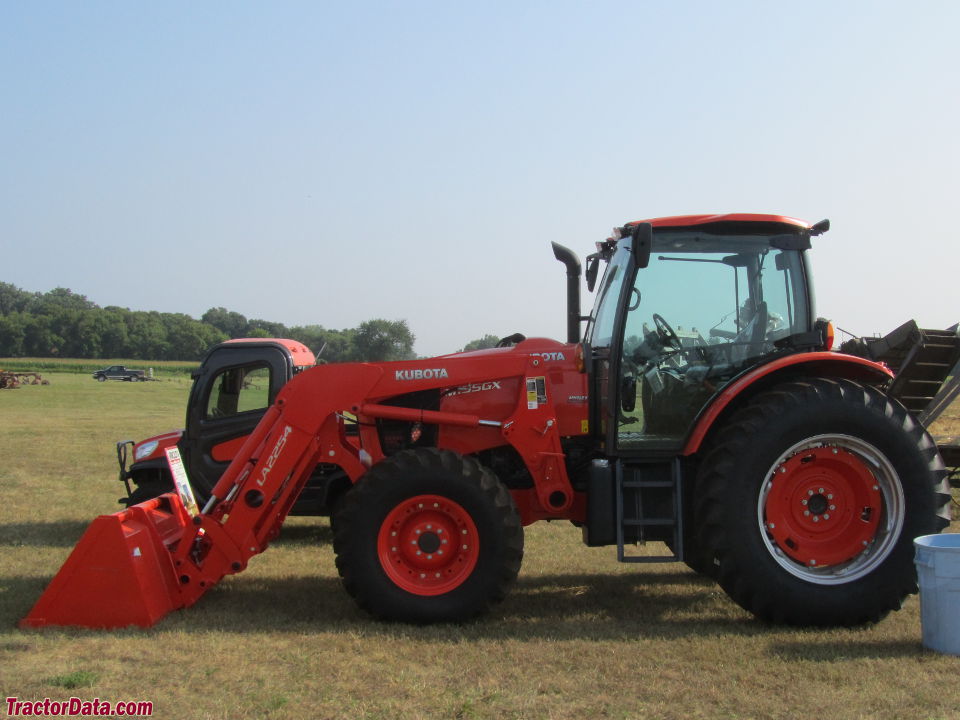

Kubota M135GX tractor photo
2012 -    Grand X Series
Row-Crop tractor
Series back:Kubota M126GX






Production:

Manufacturer:Kubota
Original price (USD)
   $81,752 (2014 )


Kubota M135GX Engine:

   Kubota 6.1L 4-cyl diesel
full engine details ...


Capacity:

Fuel:50.2 gal [190.0 L]

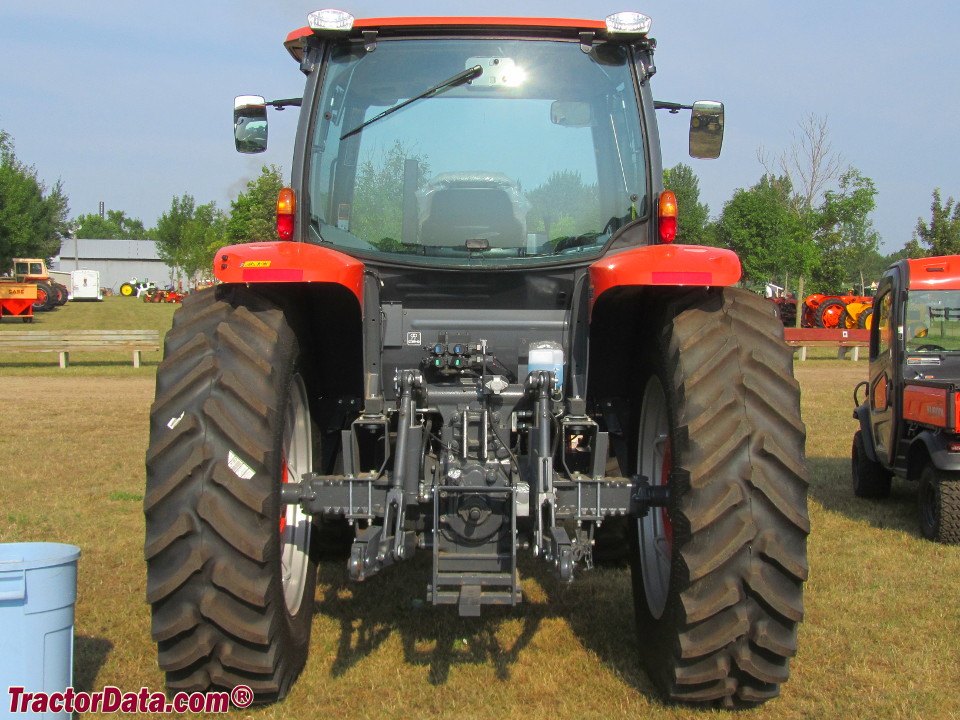

3-Point Hitch:

Rear Type:II
Control:electronic lower-link draft control
Rear lift (at 24"/610mm):6834 lbs [3099 kg]
 9447 lbs [4285 kg] (optional)
Rear Arms:telescopic lower link ends


Power Take-off (PTO):

Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000 (1.375)


Dimensions & Tires:

Wheelbase:105.9 inches [268 cm]
Weight:10373 lbs [4705 kg]
Front tire:14.9R24
Rear tire:18.4R38
full dimensions and tires ...


Kubota M135GX attachments:

 front-end loader
all M135GX attachments ...

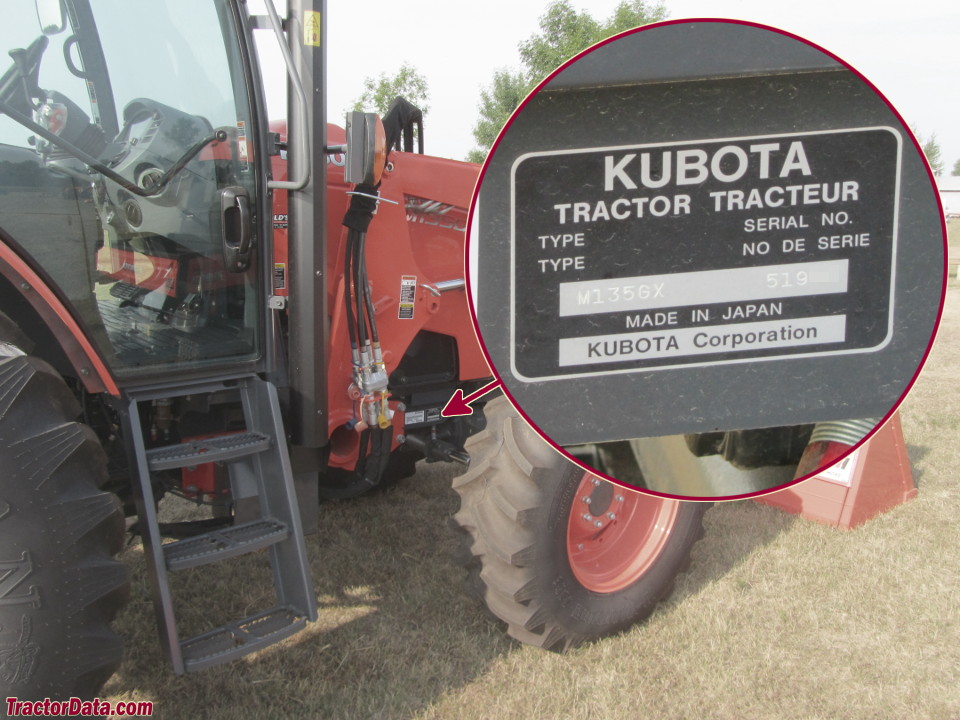

M135GX Serial Numbers:

Location:Right side of tractor frame, above the front axle.

- Serial numbers unknown -



Kubota M135GX Power:

Engine:135 hp [100.7 kW]
PTO (claimed):118 hp [88.0 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic front and rear
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Grand X Cab standard with air-conditioning.


Hydraulics:

Valves:2 to 4
Pump flow:18.7 gpm [70.8 lpm]
Steering flow:16 gpm [60.6 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:80


Battery:

Cold-cranking amps:1090
Volts:12
Amp-hours:160
