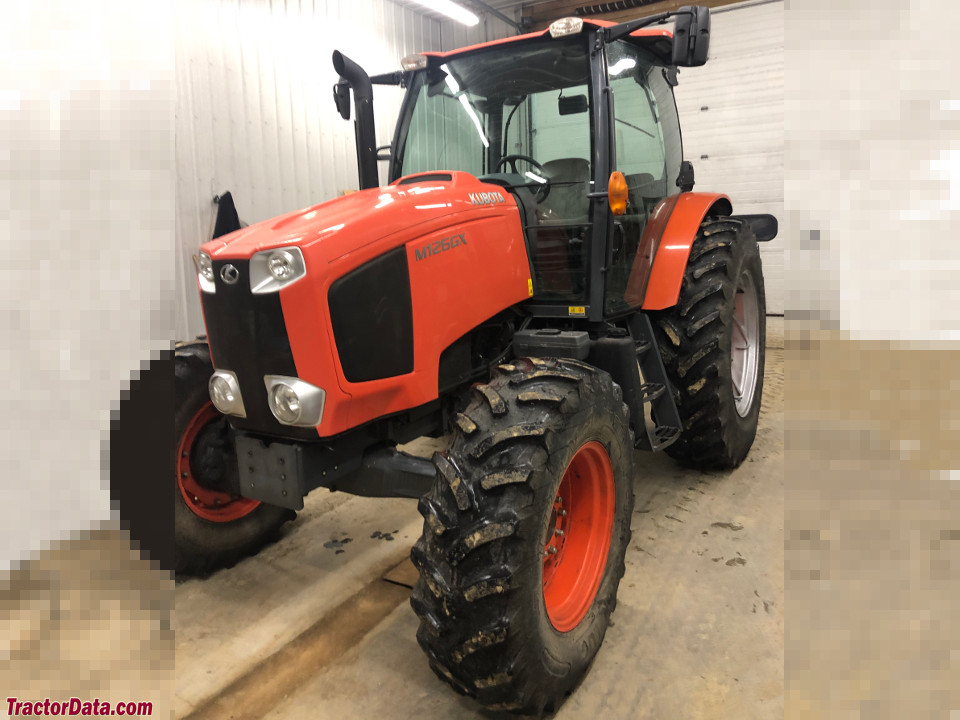

Kubota M126GX
| | 2012 - |
| Grand X Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Row-Crop tractor
|
| Original price: | $78,152 (2014 )
|
| Kubota M126GX Power |
| Engine: | 125 hp
93.2 kW
|
| PTO (claimed): | 108 hp
80.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Grand X Cab standard with air-conditioning.
|
| Transmissions: | 24-speed eight-speed power shift
|
| | 32-speed
|
 Transmission details ... |
| Hydraulics |
| Valves: | 2 to 4
|
| Pump flow: | 18.7 gpm
70.8 lpm
|
| Steering flow: | 16 gpm
60.6 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | electronic lower-link draft control
|
| Rear lift (at 24"/610mm): | 6834 lbs
3099 kg
|
| | 9447 lbs
4285 kg (optional)
|
| Rear Arms: | telescopic lower link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 80
|
| Battery CCA: | 1090
|
| Battery volts: | 12
|
| Battery AH: | 160
|
