Kubota M110GX
| | 2012 - |
| Grand X Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Row-Crop tractor
|
| Original price: | $70,010 (2014 )
|
| Kubota M110GX Power |
| Engine: | 109.5 hp
81.7 kW
|
| PTO (claimed): | 96 hp
71.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Grand X Cab standard with air-conditioning.
|
| Transmissions: | 24-speed eight-speed power shift
|
| | 32-speed
|
 Transmission details ... |
| Hydraulics |
| Valves: | 2 to 4
|
| Pump flow: | 18.7 gpm
70.8 lpm
|
| Steering flow: | 16 gpm
60.6 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | electronic lower-link draft control
|
| Rear lift (at 24"/610mm): | 6834 lbs
3099 kg
|
| | 9447 lbs
4285 kg (optional)
|
| Rear Arms: | telescopic lower link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| M110GX Serial Numbers |

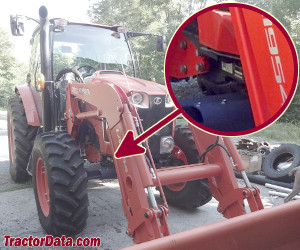

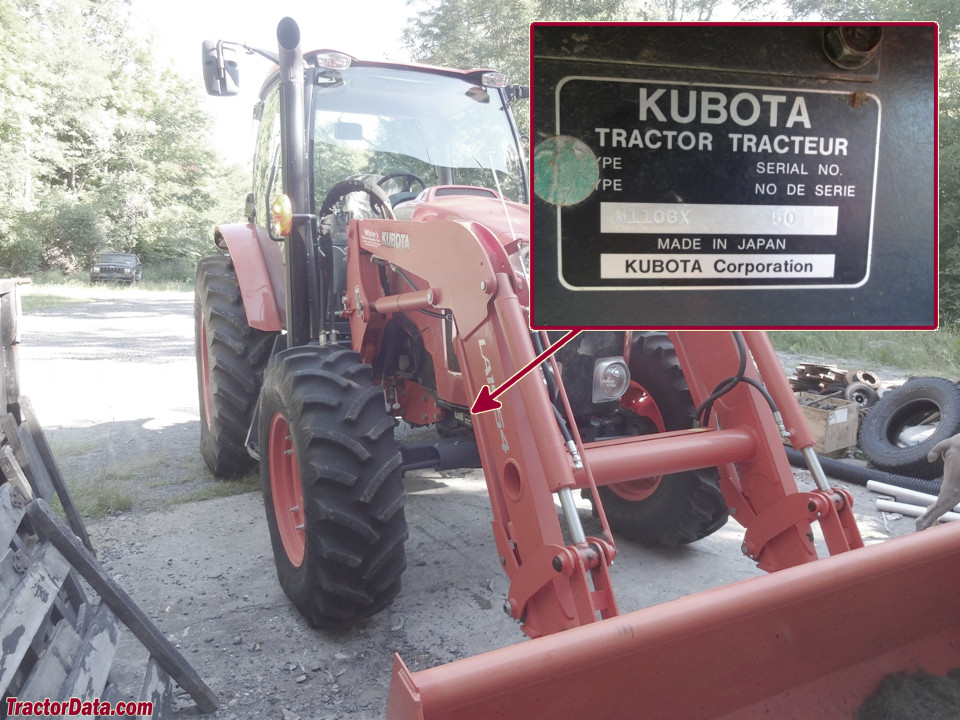

| Location: | Serial number decal on the right side of the M110GX tractor frame, above the front axle.
|
photo of M110GX serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 80
|
| Battery CCA: | 900
|
| Battery volts: | 12
|
| Battery AH: | 100
|
| Page information |
| Last update: | October 14, 2020
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
