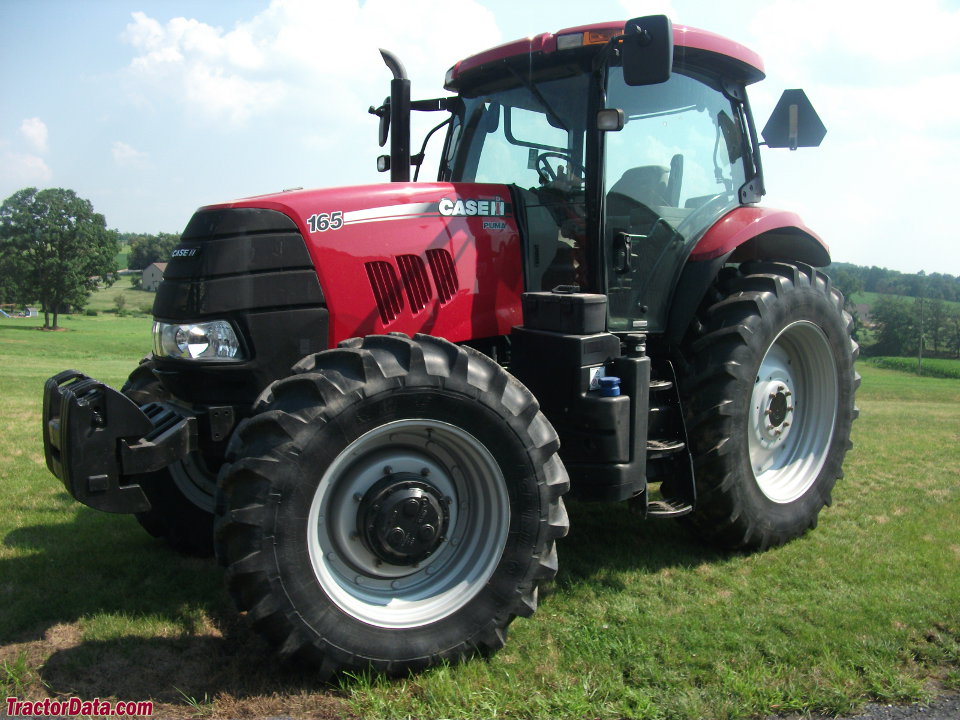

CaseIH Puma 165
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| Built in Basildon, England | |
| Original price | $166,225 (2015 CVT ) |
| $157,083 (2015 power shift ) | |
| CaseIH Puma 165 Engine | |
| FPT 6.7L 6-cyl diesel | |
| Fuel tank | 71 gal 268.7 L |
| 86 gal*With 60L auxiliary tank. 325.5 L | |
| Exhaust fluid (DEF) | 12.7 gal 48.1 L |
 Engine details ... | |
| CaseIH Puma 165 Transmissions | |
| 18-speed full power shift | |
| continuously variable transmission (CVT) | |
 Transmission details ... |
| CaseIH Puma 165 Power | |
| Engine | 165 hp 123.0 kW |
| PTO (claimed) | 135 hp 100.7 kW |
| Drawbar (tested) | 109.4 hp 81.6 kW |
| PTO (tested) | 152.2 hp 113.5 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Cab standard with air-conditioning. | |
| Photos | |
 | |
 CaseIH Puma 165 photos... | |
| Hydraulics | |
| Type | closed center pressure flow compensating |
| Valves | 3 to 5 |
| Pump flow | 26.5 gpm 100.3 lpm |
| Total flow | 43.5 gpm 164.6 lpm |
| Steering flow | 17 gpm 64.3 lpm |
| Tractor hitch | |
| Rear Type | II/IIIN |
| Rear lift | 7900 lbs 3583 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| 1000/1000E (1.75) | |
| Dimensions & Tires | |
| Wheelbase | 107.6 inches 273 cm |
| 109.8 inches*With suspended front axle 278 cm | |
| Weight | 13900 to 14500 pounds |
| Front tire | 380/85R30 |
| Rear tire | 460/85R42 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| Battery volts | 12 |
| References | |
 | |
| Puma Series Tractors published in 2017, by CaseIH |
