Tractors > J.I. Case > 610

J.I. Case 610 - tests

J.I. Case 610 tractor photo
1958 - 1964
Agricultural Crawler tractor
more J.I. Case 610 specifications...






Nebraska Tractor Test 714:

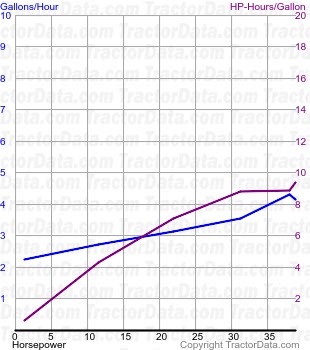

610 fuel use from test 714
Test Date:August 19 - 28, 1959
Type:Diesel 4-speed crawler
PTO power (rated engine speed):38.58 hp [28.8 kW]
PTO fuel use (engine speed):4.2 gal/hour [15.9 l/hour]
Drawbar power (max):42.40 hp [31.6 kW]
Drawbar fuel use (max):5.3 gal/hour [20.1 l/hour]
Drawbar pull (max):8801 lbs [3992 kg]
Max pull gear:1
Test report:PDF file
