New Holland T8.420

New Holland T8.420 tractor photo
2013 - 2014
Genesis T8 Series
Row-Crop tractor
Manufacturer:New Holland
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
New Holland T8.420 Power
Engine (gross):367 hp
273.7 kW
PTO (claimed):305 hp
227.4 kW
Drawbar (tested):255.76 hp
190.7 kW
PTO (tested):351.68 hp
262.2 kW
power test details ...
New Holland T8.420 Engine
FPT 8.7L 6-cyl diesel
Fuel tank:152 gal
575.3 L
Exhaust fluid (DEF):23.6 gal
89.3 L
Engine details ...
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Cab:Cab standard with air-conditioning.
Transmission:continuously variable transmission
Transmission details ...
No photos of the New Holland T8.420 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Type:closed center pressure flow compensating
Valves:4 to 6
Pump flow:44 gpm
166.5 lpm
 75 gpm
283.9 lpm *With optional MegaFlow
Tractor hitch
Rear Type:IVN/III
Control:electronic lower-link draft sensing
Rear lift:17500 lbs
7938 kg
 19500 lbs
8845 kg *Optional
Front Hitch:optional
Front lift:12800 lbs
5806 kg
Drawbar:Cat. 4
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Engine RPM:1000@1778
Dimensions & Tires
Wheelbase:139.8 inches
355 cm
Weight:30165 lbs
13682 kg
Front tire:420/85R34L480/80R50
Full dimensions and tires ...
T8.420 Serial Numbers

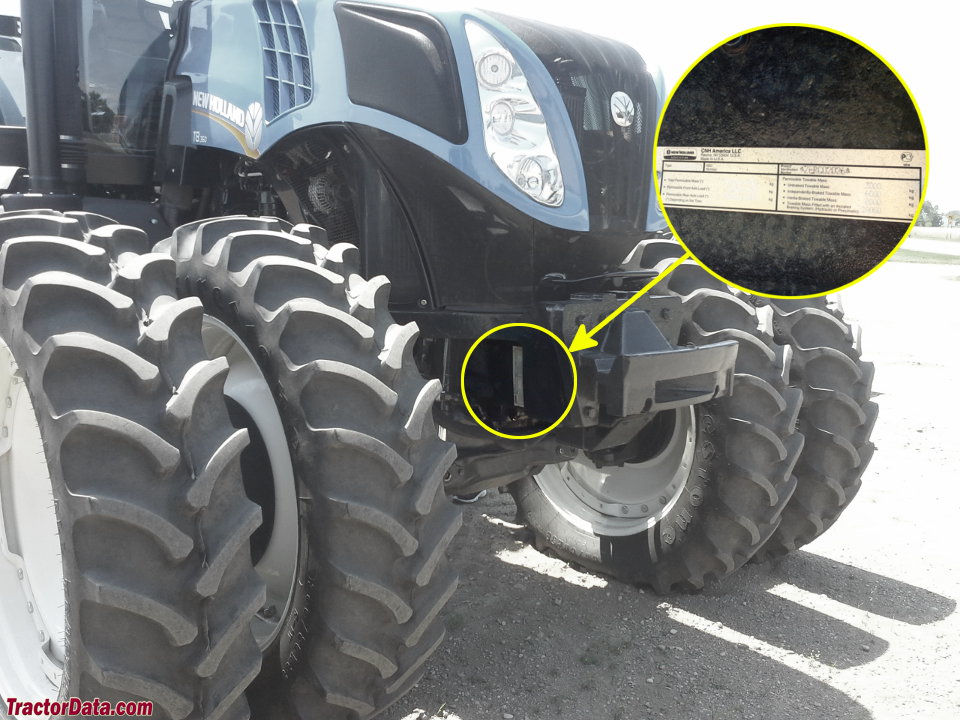

Location:Serial number plate on the front-right of the tractor frame.
photo of T8.420 serial number

Charging system:alternator
Charging amps:200
Battery volts:12
