Tractors > New Holland > Workmaster 35

New Holland Workmaster 35

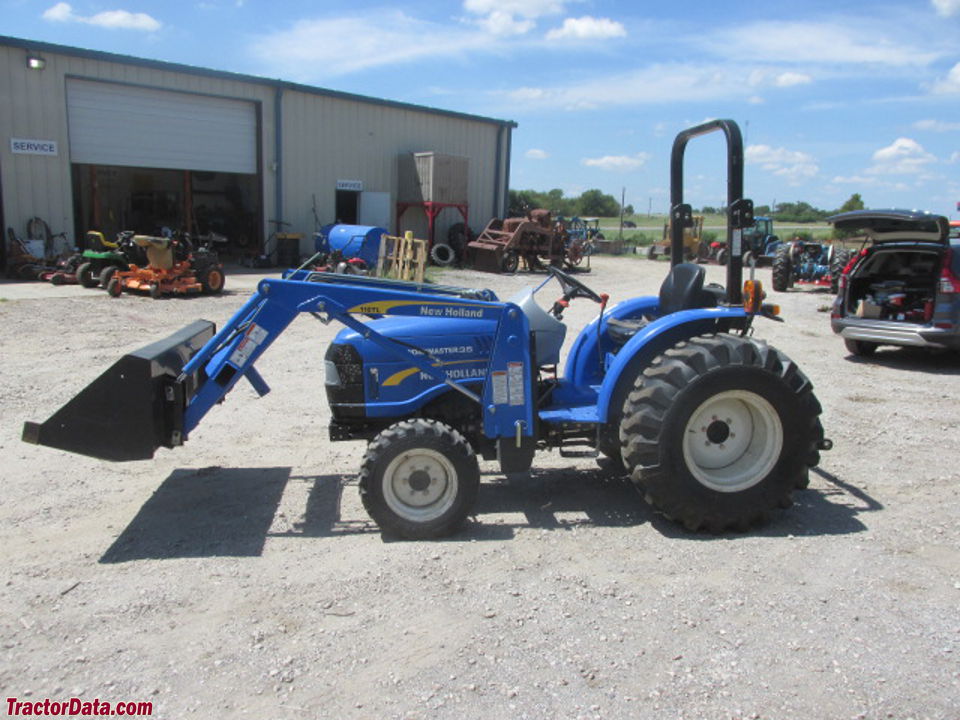

New Holland Workmaster 35 tractor photo
2013 -    Workmaster Series
Compact Utility tractor
Series next:New Holland Workmaster 40






Production:

Manufacturer:New Holland


New Holland Workmaster 35 Engine:

   LS 1.9L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.4 gal [28.0 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):1807 lbs [819 kg]
Rear lift (at 24"/610mm):1433 lbs [650 kg]
Rear Arms:fixed link ends with telescoptic stabilizers


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540 (1.375)
Mid PTO:independent (optional)
Clutch:electro-hydraulic
Mid RPM:2000


Dimensions & Tires:

Weight:2900 lbs [1315 kg]
full dimensions and tires ...


New Holland Workmaster 35 attachments:

 front-end loader
all Workmaster 35 attachments ...


Workmaster 35 Serial Numbers:


- Serial numbers unknown -



New Holland Workmaster 35 Power:

Engine (gross):33 hp [24.6 kW]
Gear PTO (claimed):28.4 hp [21.2 kW]
Hydro PTO (claimed):26.6 hp [19.8 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center gear pump
Pump flow:8.2 gpm [31.0 lpm]
Total flow:13 gpm [49.2 lpm]
Steering flow:4.8 gpm [18.2 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:50


Battery:

Number:1
Cold-cranking amps:660
Volts:12
Amp-hours:80
