Kioti CS2410

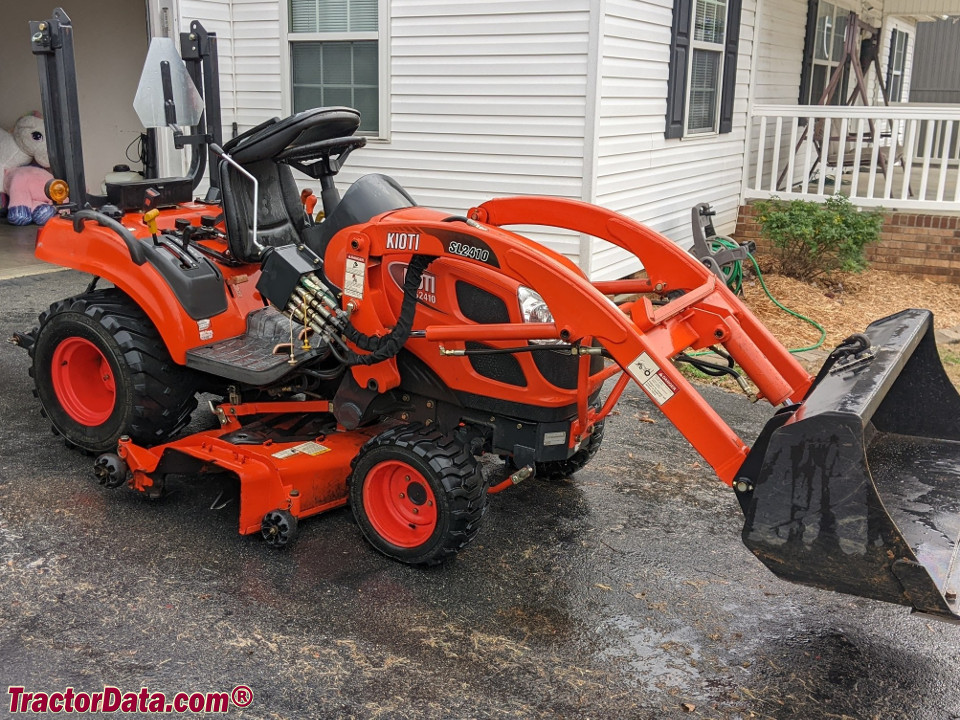

Kioti CS2410 tractor photo
2012 - 2014
CS Series
Sub-Compact Utility tractor
Series:CS2410
CS2510
Production
Manufacturer:Kioti (a part of Daedong)
Type:Sub-Compact Utility tractor
Kioti CS2410 Power
Engine (gross):24.5 hp
18.3 kW
PTO (claimed):19.4 hp
14.5 kW
Kioti CS2410 Engine
Shibaura 1.1L 3-cyl diesel
Fuel tank:6.7 gal
25.4 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Transmission details ...
Photos
No photos of the Kioti CS2410 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center gear pump
Pump flow:6.5 gpm
24.6 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at 24"/610mm):700 lbs
317 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:standard
Mid RPM:2200
Dimensions & Tires
Wheelbase:55.1 inches
139 cm
Weight:1485 lbs
673 kg
Full dimensions and tires ...
Kioti CS2410 attachments
60" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
Electrical
Ground:negative
Battery volts:12
